Fuel tank for BMW 1500-2000CS 1800 (1969)

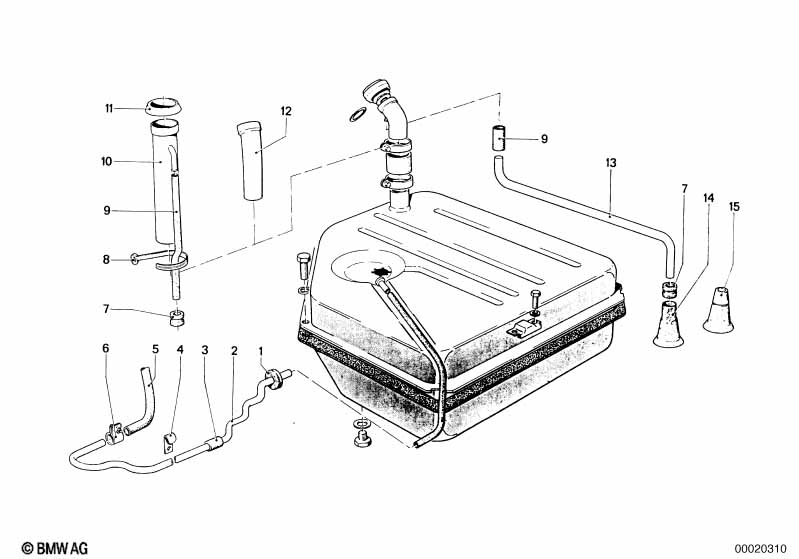

This Fuel tank technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable grommet | 1 | 63265555139 | $6.36 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fuel pipe | 1 | 09/1965 | 01/1972 | 16121105340 | ENDED | Shop at ECS Tuning | |||

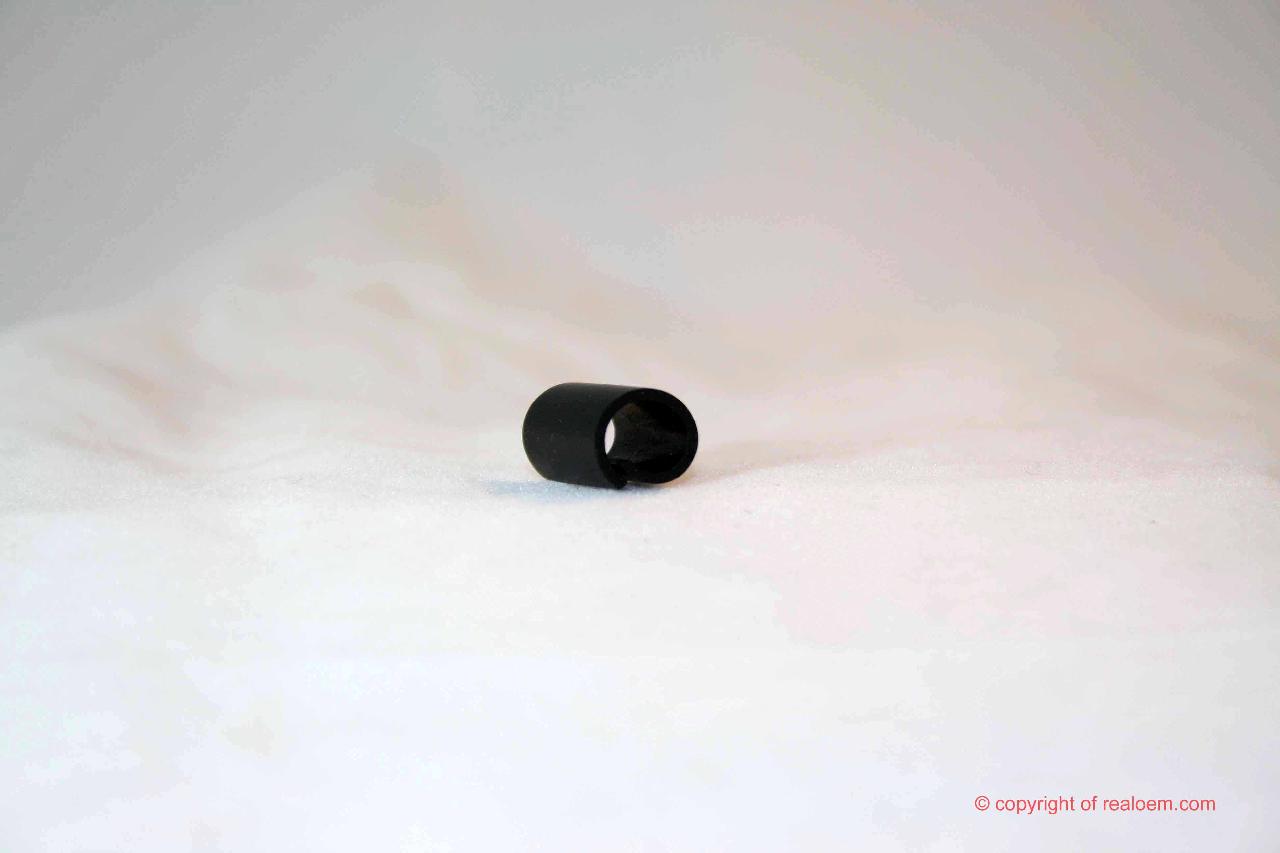

| 03 | Rubber grommet | 10 | 09/1965 | 01/1972 | 16124584137 | $2.26 | Shop at ECS Tuning | |||
| 04 | Clamp | 1 | 16121252458 | ENDED | Shop at ECS Tuning | |||||
| 05 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||

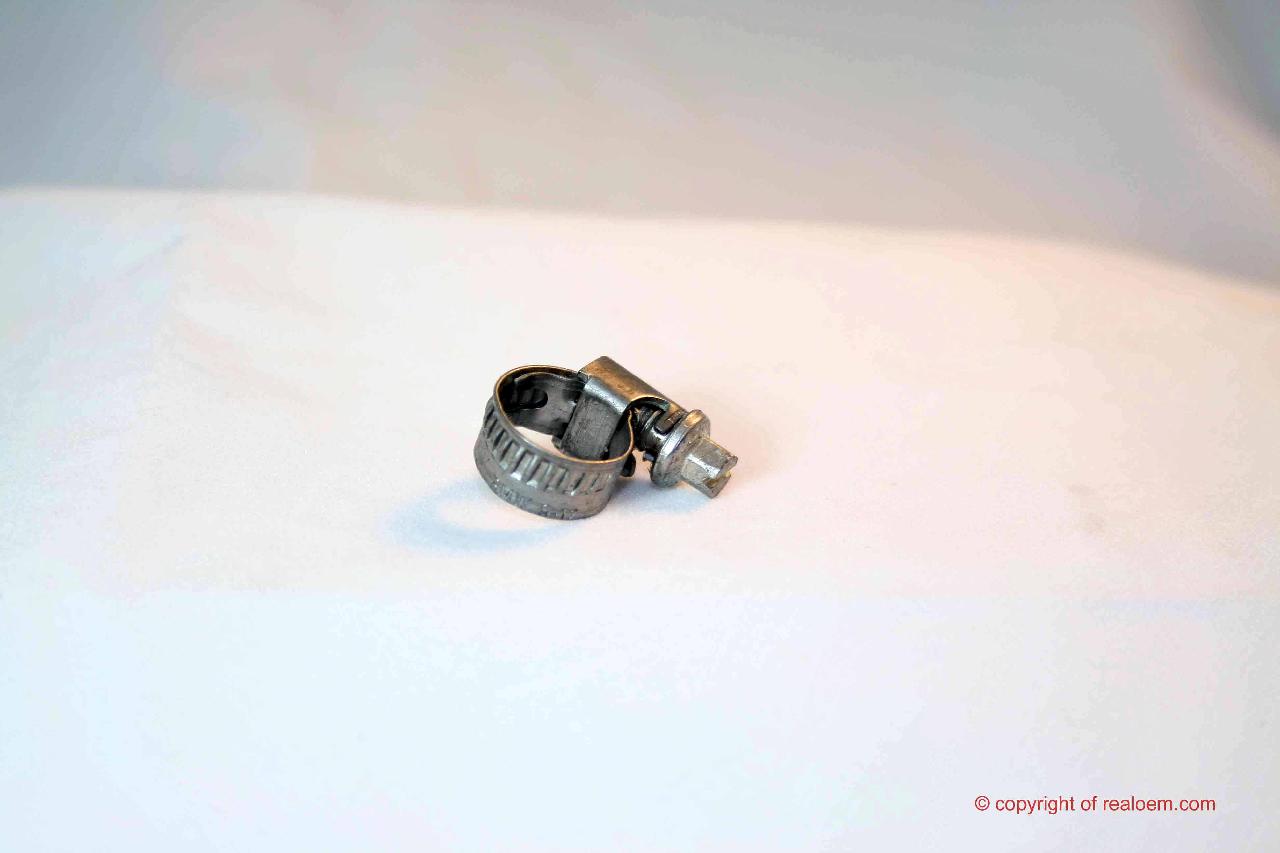

| 06 | Hose clamp | L=9-12 | 1 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 12 | Filler pipe | 1 | 16114680128 | ENDED | Shop at ECS Tuning | |||||
| 13 | Vent pipe | 1 | 16114780100 | $54.58 | ENDED | Shop at ECS Tuning | ||||

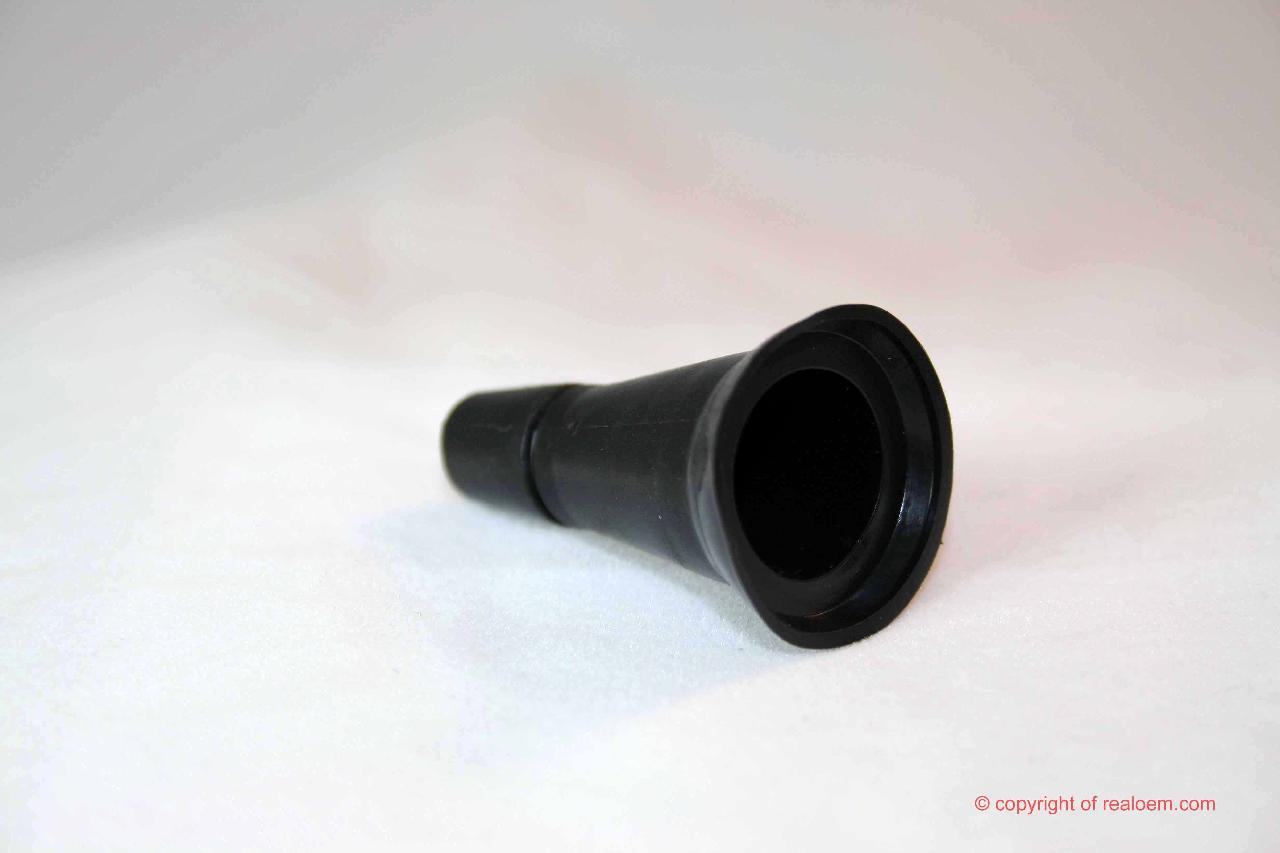

| 15 | Grommet | 1 | 16121101014 | $1.21 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
