Fuel tank for BMW 2500-3.3Li 3.3L (1974)

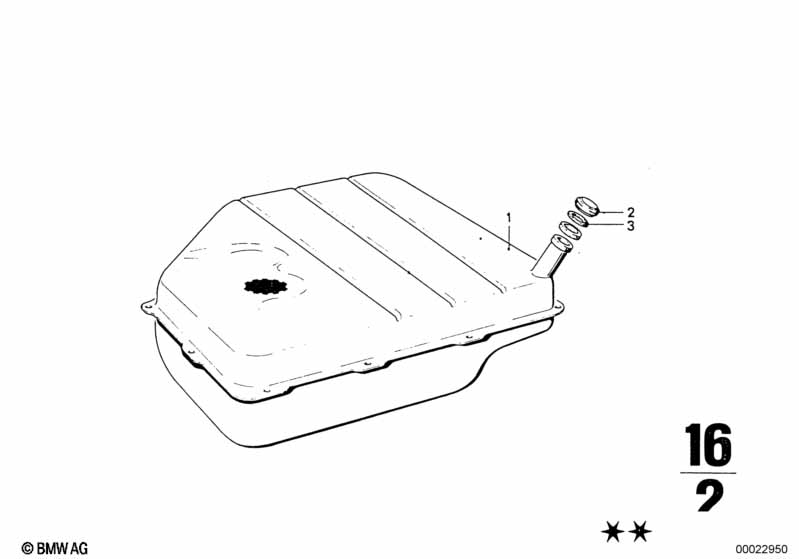

This Fuel tank technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Late version | |||||||||
| 01 | Fuel tank | 78,9 L | 1 | 09/1973 | 02/1977 | 16111114197 | $324.76 | ENDED | Shop at ECS Tuning | |
| 03 | Rubber seal | 1 | 16111179680 | $6.70 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3L Fuel tank?
- This technical diagram illustrates the Fuel tank within the Fuel Supply group for the 2500-3.3Li 3.3L produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Fuel tank (Part #16111114197).
- Which models use the hardware listed in this Fuel tank?
- The hardware and components featured in the Fuel tank are specific to the 2500-3.3Li 3.3L produced during 1974. These technical specifications ensure that parts like the Fuel tank (16111114197) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel tank assembly?
- Each item in the Fuel tank corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3L, you can identify the Fuel tank by locating its position on the schematic, which then links to the official BMW part number 16111114197 for the Fuel Supply section.
