Fuel tank for BMW 2500-3.3Li 3.3Li (1975)

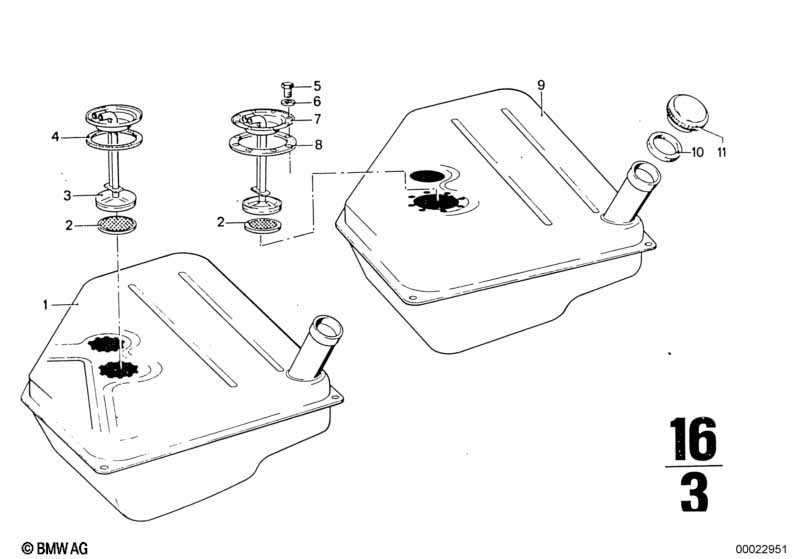

This Fuel tank technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

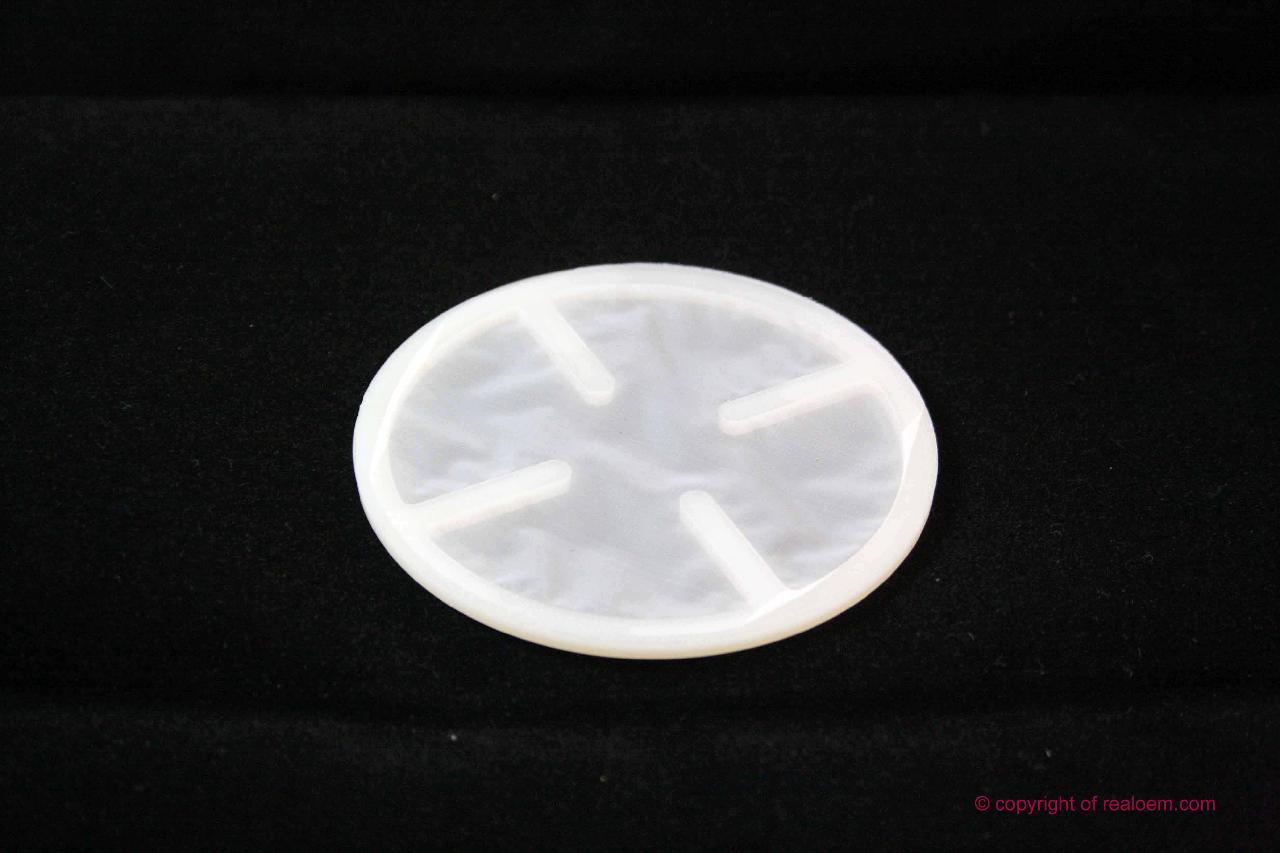

| 02 | Fuel filter | 1 | 16121106983 | $22.11 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M5X14-8.8-ZNNIV | 8 | 07119904269 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Suction device | L=240 MM | 1 | 09/1974 | 02/1977 | 16121111587 | ENDED | Shop at ECS Tuning | ||
| 08 | Gasket ring | 13 | 16121110598 | $10.22 | Shop at ECS Tuning | |||||
| 09 | Fuel tank | 78,9 L | 1 | 09/1973 | 02/1977 | 16111111648 | ENDED | Shop at ECS Tuning | ||
| 10 | Rubber seal | 1 | 16111179680 | $6.70 | Shop at ECS Tuning | |||||
| 11 | Lockable filler cap (code) | 1 | 10/1975 | 02/1977 | 16111115396 | $112.72 | ENDED | Shop at ECS Tuning |
