Fuel tank for BMW 2500-3.3Li 3.3Li (1975)

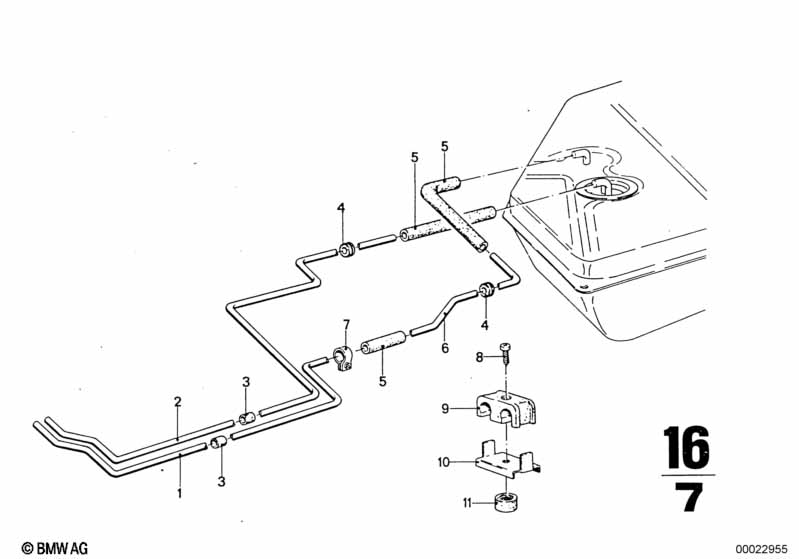

This Fuel tank technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Fg -> Ece 75/ 2.8 L Fg -> Ece 75/ 3.0 L |
||||||||||
| 01 | Fuel pipe | 1 | 16121112220 | ENDED | Shop at ECS Tuning | |||||
| 02 | Fuel pipe | 1 | 16121112221 | Shop at ECS Tuning | ||||||
| 03 | Rubber grommet | 24 | 16124584137 | $2.26 | Shop at ECS Tuning | |||||
| 04 | Grommet | 2 | 16124780109 | $1.51 | Shop at ECS Tuning | |||||
| 05 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
