Fuel tank for BMW 2500-3.3Li 3.0Si (1971)

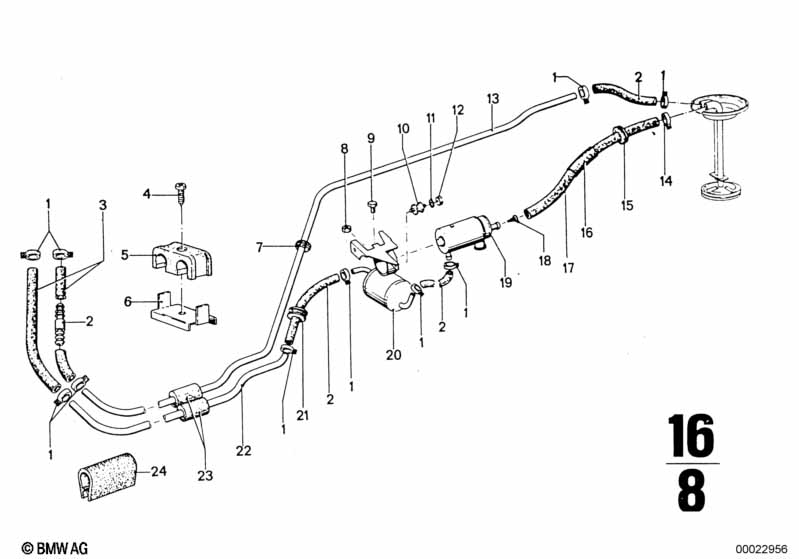

This Fuel tank technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose clamp | L=9-12 | 5 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 03 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 07 | Grommet | 1 | 16124780109 | $1.51 | Shop at ECS Tuning | |||||
| 08 | Self-locking hex nut | M6-10 ZN | 1 | 02/1977 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 08 | Self-locking hex nut | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M6X20-8.8-ZNS | 1 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 10 | Rubber Mounting | 3 | 16121177891 | $10.82 | Shop at ECS Tuning | |||||
| 12 | Hex nut | M6-8-ZNNIV SI | 6 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Fuel pipe | 1 | 09/1971 | 02/1977 | 16121108129 | $30.52 | ENDED | Shop at ECS Tuning | ||
| 14 | Hose clamp | L15-19 | 2 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 15 | Rubber grommet | 2 | 16121107262 | $3.39 | Shop at ECS Tuning | |||||
| 17 | Fuel hose | 12X18 | X | 16121176440 | $15.25 | Shop at ECS Tuning | ||||
| 18 | Filter cartridge | 1 | 09/1971 | 02/1977 | 16121110497 | ENDED | Shop at ECS Tuning | |||
| 19 | Fuel pump | 1 | 16141178751 | $387.81 | Shop at ECS Tuning | |||||
| 20 | Bracket with expansion unit | 1 | 16121111541 | $136.33 | Shop at ECS Tuning | |||||
| 21 | Rubber grommet | 1 | 16121105846 | $10.57 | Shop at ECS Tuning | |||||
| 22 | Return pipe | 1 | 09/1971 | 02/1977 | 16121111535 | $27.58 | ENDED | Shop at ECS Tuning | ||
| 23 | Rubber grommet | 21 | 09/1971 | 02/1977 | 16124584137 | $2.26 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
