Transmission oil cooling/oil cooler for BMW 1500-2000CS 1800 (1967)

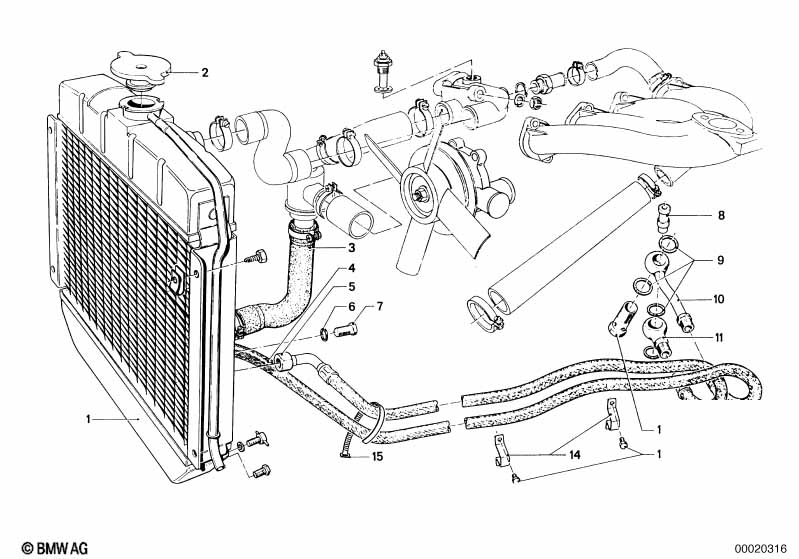

This Transmission oil cooling/oil cooler technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1967.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiator | 1 | 17111100248 | ENDED | Shop at ECS Tuning | |||||
| 01 | Radiator with transmission oil cooler | 1 | 17111100839 | ENDED | Shop at ECS Tuning | |||||
| 02 | Radiator cap | D=60 MM 1,0 BAR | 1 | 17111100848 | $17.06 | Shop at ECS Tuning | ||||
| 03 | Hose | 1 | 02/1965 | 08/1971 | 11531250702 | $19.61 | Shop at ECS Tuning | |||
| 06 | Gasket ring | A08X11,5-CU | 1 | 07119963042 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Screw plug | 2 | 17111101872 | $2.53 | ENDED | Shop at ECS Tuning | ||||
| 09 | Gasket ring | A18X22 | 4 | 07119963304 | ENDED | Shop at ECS Tuning | ||||
| 11 | Connector | 2 | 17221101244 | ENDED | Shop at ECS Tuning | |||||
| 12 | Hollow bolt | M18X32 | 2 | 32411117183 | $7.53 | ENDED | Shop at ECS Tuning | |||
| 12 | Valve | 1 | 02/1965 | 02/1970 | 17221101245 | ENDED | Shop at ECS Tuning | |||
| 14 | Clamp | 2 | 17221101246 | ENDED | Shop at ECS Tuning | |||||

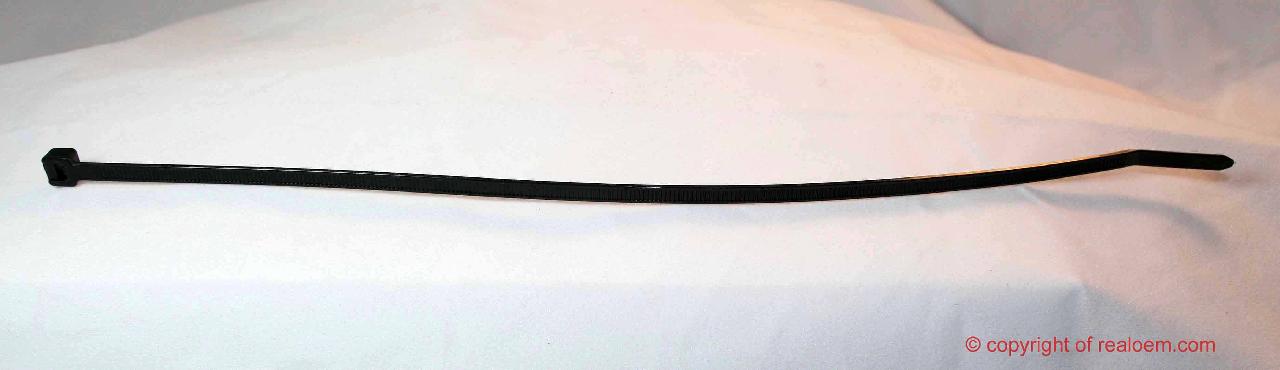

| 15 | Cable tie | L=292MM/B=4,8MM | 2 | 61131377134 | $0.77 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
