Exhaust system for BMW 1500-2000CS 1800 (1969)

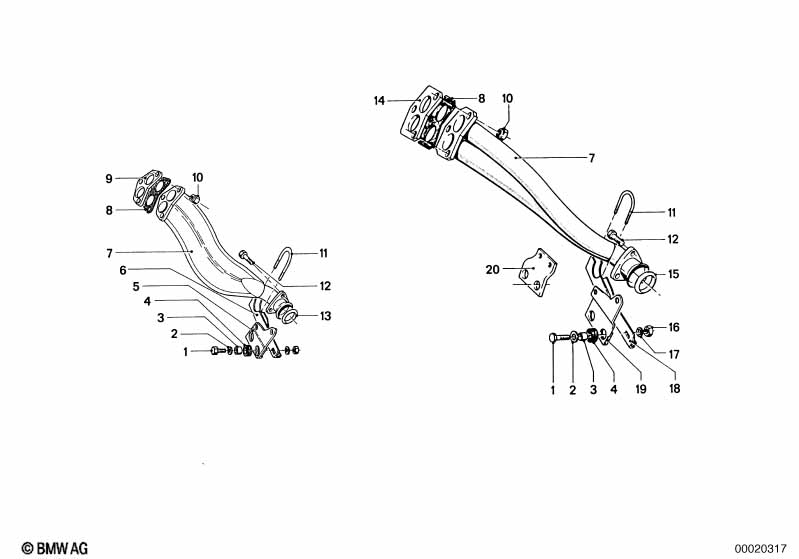

This Exhaust system technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt with washer | M6X30-U1 | 2 | 07119905429 | $2.80 | Shop at ECS Tuning | ||||
| 02 | Washer | 6 | 18214690192 | $0.20 | Shop at ECS Tuning | |||||
| 03 | Spacer sleeve | 2 | 18214690169 | $6.18 | Shop at ECS Tuning | |||||
| 04 | Joint sleeve | 2 | 18211712091 | $2.86 | Shop at ECS Tuning | |||||
| 07 | Exhaust pipe | 1 | 18114690129 | $79.30 | ENDED | Shop at ECS Tuning | ||||
| 07 | Exhaust pipe | 1 | 04/1964 | 02/1971 | 18114790101 | ENDED | Shop at ECS Tuning | |||
| 08 | Gasket Asbestos Free | 1 | 18111728363 | $17.87 | Shop at ECS Tuning | |||||

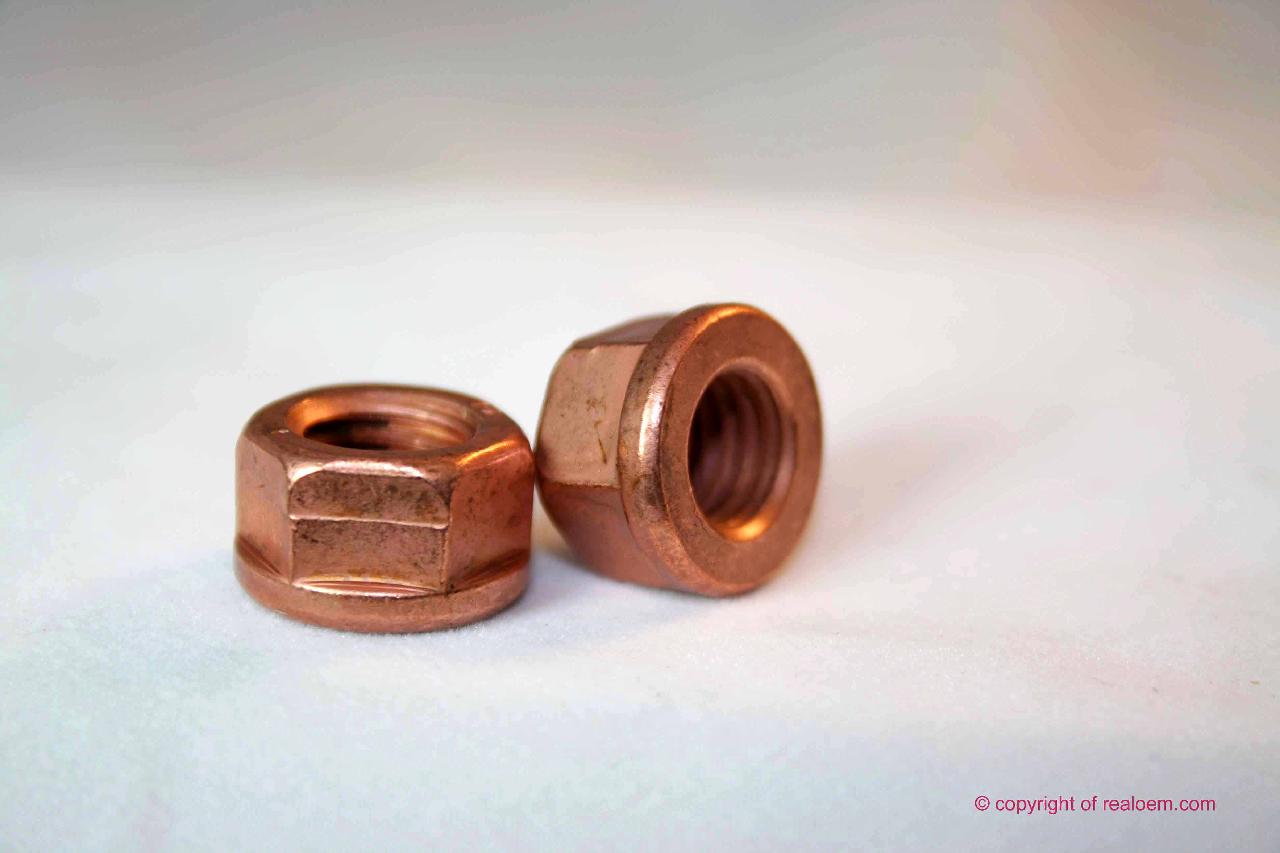

| 10 | Hex nut | M10 | 3 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 11 | Bow | M8 | 1 | 18211245377 | $3.43 | Shop at ECS Tuning | ||||
| 15 | Gasket ring | 47MM | 1 | 18111175311 | $8.37 | Shop at ECS Tuning | ||||
| 16 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 18 | Exhaust support | 1 | 18211245383 | $4.35 | ENDED | Shop at ECS Tuning | ||||
| 20 | Holder | 1 | 09/1965 | 01/1972 | 18211100257 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
