Exhaust system for BMW 2500-3.3Li 3.0L (1975)

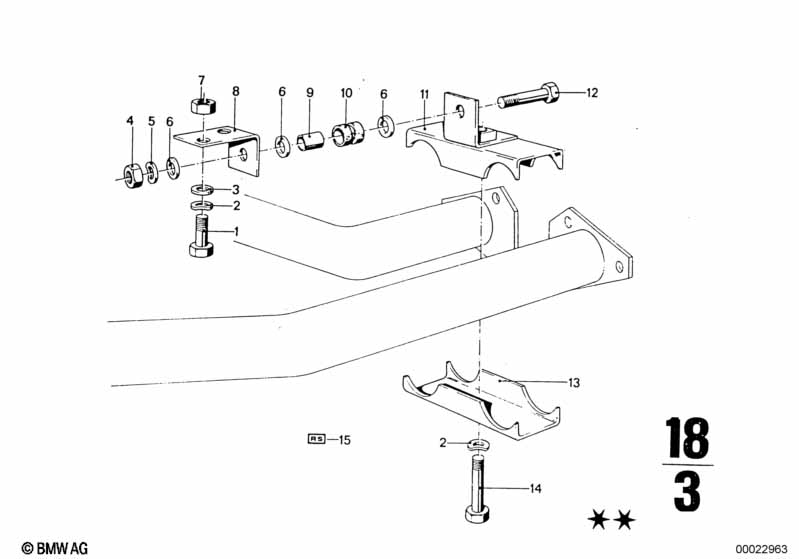

This Exhaust system technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M8X30-ZN | 1 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 01 | Hex bolt | M8X30-ZN | 1 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 02 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 02 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 03 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 03 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Washer | 3 | 18214690192 | $0.20 | Shop at ECS Tuning | |||||
| 06 | Washer | 3 | 18214690192 | $0.20 | Shop at ECS Tuning | |||||
| 07 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Support | 1 | 08/1971 | 02/1977 | 18211107515 | $12.95 | ENDED | Shop at ECS Tuning | ||
| 08 | Support | 1 | 08/1971 | 02/1977 | 18211107515 | $12.95 | ENDED | Shop at ECS Tuning | ||
| 09 | Spacer sleeve | 1 | 18214690169 | $6.18 | Shop at ECS Tuning | |||||
| 09 | Spacer sleeve | 1 | 18214690169 | $6.18 | Shop at ECS Tuning | |||||
| 10 | Joint sleeve | 1 | 08/1971 | 02/1977 | 18211712091 | $2.86 | Shop at ECS Tuning | |||
| 10 | Joint sleeve | 1 | 08/1971 | 02/1977 | 18211712091 | $2.86 | Shop at ECS Tuning | |||
| 11 | Carrier | 1 | 18211107517 | $14.96 | ENDED | Shop at ECS Tuning | ||||
| 11 | Carrier | 1 | 18211107517 | $14.96 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X30-8.8-ZNS3 | 1 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X30-8.8-ZNS3 | 1 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Pipe clamp | 1 | 18211246379 | $5.37 | Shop at ECS Tuning | |||||
| 13 | Pipe clamp | 1 | 18211246379 | $5.37 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M8X70 | 1 | 07119912800 | $2.18 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M8X70 | 1 | 07119912800 | $2.18 | Shop at ECS Tuning | ||||
| 15 | Set mounting parts | 1 | 18211245388 | ENDED | Shop at ECS Tuning | |||||
| 15 | Set mounting parts | 1 | 18211245388 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0L Exhaust system?
- This technical diagram illustrates the Exhaust system within the Exhaust system group for the 2500-3.3Li 3.0L produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119913662).
- Which models use the hardware listed in this Exhaust system?
- The hardware and components featured in the Exhaust system are specific to the 2500-3.3Li 3.0L produced during 1975. These technical specifications ensure that parts like the Hex bolt (07119913662) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust system assembly?
- Each item in the Exhaust system corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0L, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119913662 for the Exhaust system section.
