Exhaust system for BMW 2500-3.3Li 3.0L (1975)
This Exhaust system technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support | 1 | 18211245931 | $3.11 | Shop at ECS Tuning | |||||
| 01 | Support | 1 | 18211245931 | $3.11 | Shop at ECS Tuning | |||||
| 02 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 02 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M8X30-ZN | 1 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M8X30-ZN | 1 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||

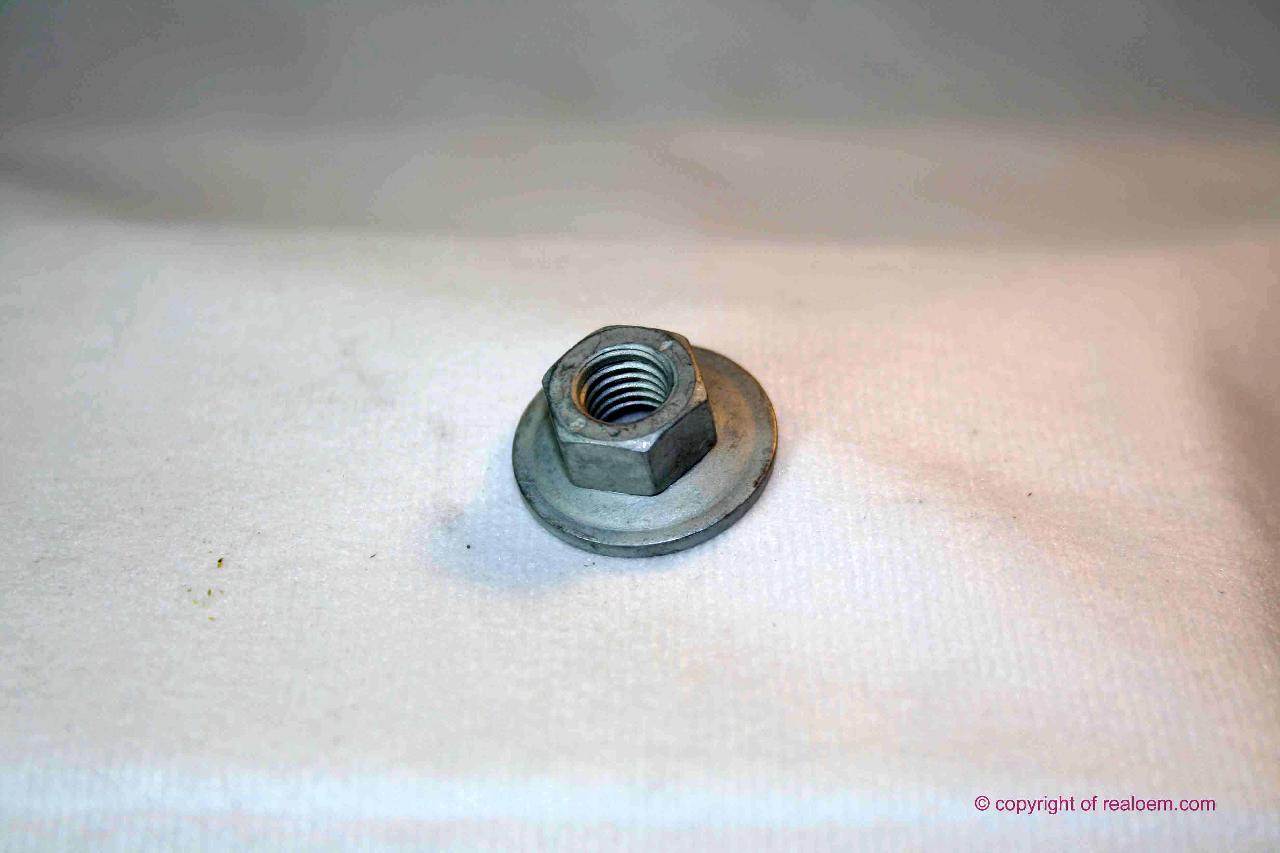

| 04 | Hex nut with plate | M8 | 1 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 04 | Hex nut with plate | M8 | 1 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Pipe clamp | 2 | 18211246379 | $5.37 | Shop at ECS Tuning | |||||
| 06 | Pipe clamp | 2 | 18211246379 | $5.37 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M8X80 | 1 | 07119912558 | $2.89 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X80 | 1 | 07119912558 | $2.89 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 09 | Repair kit exhaust suspension parts | 1 | 10/1973 | 02/1977 | 18211246091 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0L Exhaust system?
- This technical diagram illustrates the Exhaust system within the Exhaust system group for the 2500-3.3Li 3.0L produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Support (Part #18211245931).
- Which models use the hardware listed in this Exhaust system?
- The hardware and components featured in the Exhaust system are specific to the 2500-3.3Li 3.0L produced during 1975. These technical specifications ensure that parts like the Support (18211245931) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust system assembly?
- Each item in the Exhaust system corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0L, you can identify the Support by locating its position on the schematic, which then links to the official BMW part number 18211245931 for the Exhaust system section.
