Muffler system for BMW 2500-3.3Li 3.3L (1974)

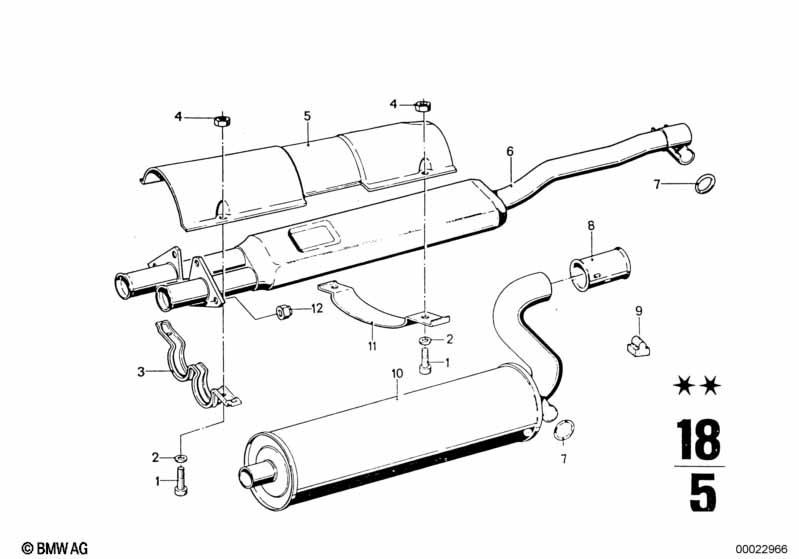

This Muffler system technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 06 | Front muffler | 1 | 01/1974 | 01/1977 | 18121245344 | $348.19 | ENDED | Shop at ECS Tuning | ||
| 07 | Rubber Ring | 4 | 18211245114 | Shop at ECS Tuning | ||||||
| 08 | Tailpipe tip | 55 MM | 1 | 08/1968 | 02/1977 | 18111102632 | $19.71 | Shop at ECS Tuning | ||
| 09 | Stop buffer | 1 | 18211101877 | $1.95 | ENDED | Shop at ECS Tuning | ||||
| 10 | Rear muffler | 1 | 05/1971 | 02/1977 | 18121245356 | $422.71 | ENDED | Shop at ECS Tuning | ||
| 12 | Hex nut | M8 SW12 | 6 | 11621744323 | $0.85 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
