Muffler system for BMW 2500-3.3Li 3.0Si (1971)

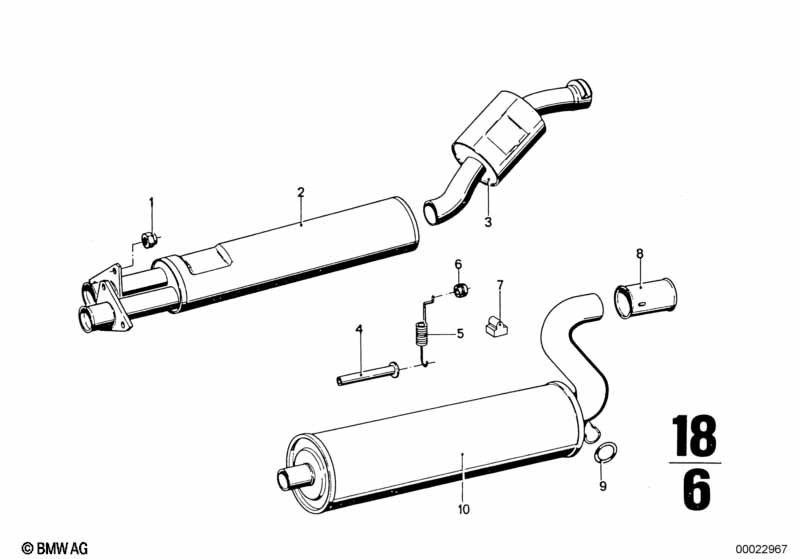

This Muffler system technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex nut | M8 SW12 | 6 | 05/1971 | 02/1977 | 11621744323 | $0.85 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Rear muffler | X | 05/1971 | 02/1977 | 18121245356 | $422.71 | ENDED | Shop at ECS Tuning | ||
| 02 | Front muffler | 1 | 05/1971 | 02/1977 | 18121245342 | $558.73 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Rear muffler | X | 05/1971 | 02/1977 | 18121245356 | $422.71 | ENDED | Shop at ECS Tuning | ||
| 03 | Center muffler | 1 | 05/1971 | 09/1973 | 18121107886 | $229.73 | ENDED | Shop at ECS Tuning | ||
| 03 | Front muffler | 1 | 05/1971 | 02/1977 | 18121245342 | $558.73 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Rear muffler | X | 05/1971 | 02/1977 | 18121245356 | $422.71 | ENDED | Shop at ECS Tuning | ||
| 04 | Pipe | 1 | 18211245218 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Front muffler | X | 18121245342 | $558.73 | ENDED | Shop at ECS Tuning | ||||
| 05 | Tension spring | 1 | 18211245346 | $4.32 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Front muffler | X | 18121245342 | $558.73 | ENDED | Shop at ECS Tuning | ||||
| 06 | Grommet | 1 | 34411102688 | $2.83 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Front muffler | X | 18121245342 | $558.73 | ENDED | Shop at ECS Tuning | ||||
| 07 | Stop buffer | 1 | 18211101877 | $1.95 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Front muffler | X | 18121245342 | $558.73 | ENDED | Shop at ECS Tuning | ||||
| 08 | Tailpipe tip | 60 MM | 1 | 05/1971 | 02/1977 | 82119413976 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 08 | Tailpipe tip | 60MM | 1 | 05/1971 | 02/1977 | 18121107766 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Front muffler | X | 05/1971 | 02/1977 | 18121245342 | $558.73 | ENDED | Shop at ECS Tuning | ||
| 09 | Rubber Ring | 4 | 18211245114 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Front muffler | X | 18121245342 | $558.73 | ENDED | Shop at ECS Tuning | ||||
| 10 | Rear muffler | 1 | 18121245356 | $422.71 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Front muffler | X | 18121245342 | $558.73 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
