Muffler system for BMW 2500-3.3Li 3.3Li (1975)

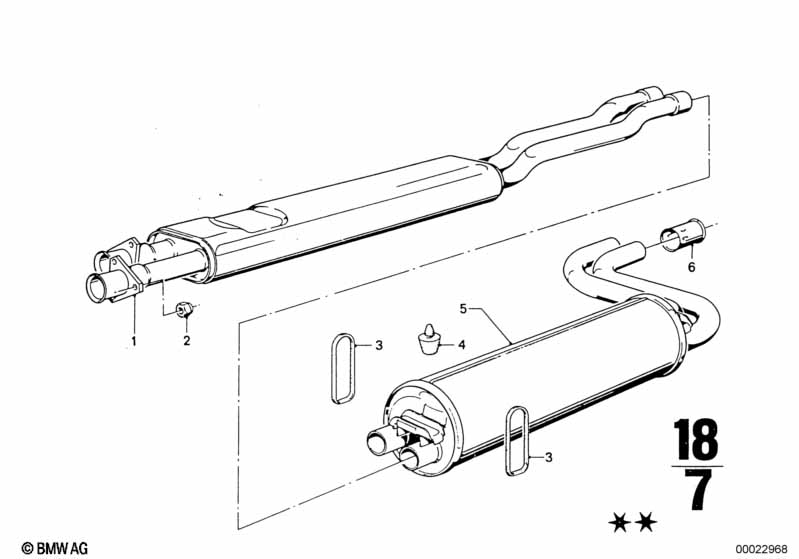

This Muffler system technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hex nut | M8 SW12 | 6 | 11621744323 | $0.85 | Shop at ECS Tuning | ||||
| 03 | Rubber Ring | 4 | 18211245114 | Shop at ECS Tuning | ||||||
| 04 | Stop buffer | 2 | 18211245935 | $9.25 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rear muffler | 1 | 18121245962 | $422.71 | Shop at ECS Tuning | |||||
| 06 | Tailpipe tip, chrome | 42 MM | 2 | 82119413972 | $14.90 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3Li Muffler system?
- This technical diagram illustrates the Muffler system within the Exhaust system group for the 2500-3.3Li 3.3Li produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Hex nut (Part #11621744323).
- Which models use the hardware listed in this Muffler system?
- The hardware and components featured in the Muffler system are specific to the 2500-3.3Li 3.3Li produced during 1975. These technical specifications ensure that parts like the Hex nut (11621744323) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Muffler system assembly?
- Each item in the Muffler system corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3Li, you can identify the Hex nut by locating its position on the schematic, which then links to the official BMW part number 11621744323 for the Exhaust system section.
