Input cylinder clutch for BMW 1500-2000CS 1500 (1962)
This Input cylinder clutch technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1962.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 08 | Piston rod | 1 | 02/1962 | 10/1971 | 21521103736 | ENDED | Shop at ECS Tuning | |||
| 10 | Hex nut | M8-8-ZNNIV SI | 2 | 02/1962 | 12/1968 | 07119905515 | $0.16 | Shop at ECS Tuning | ||

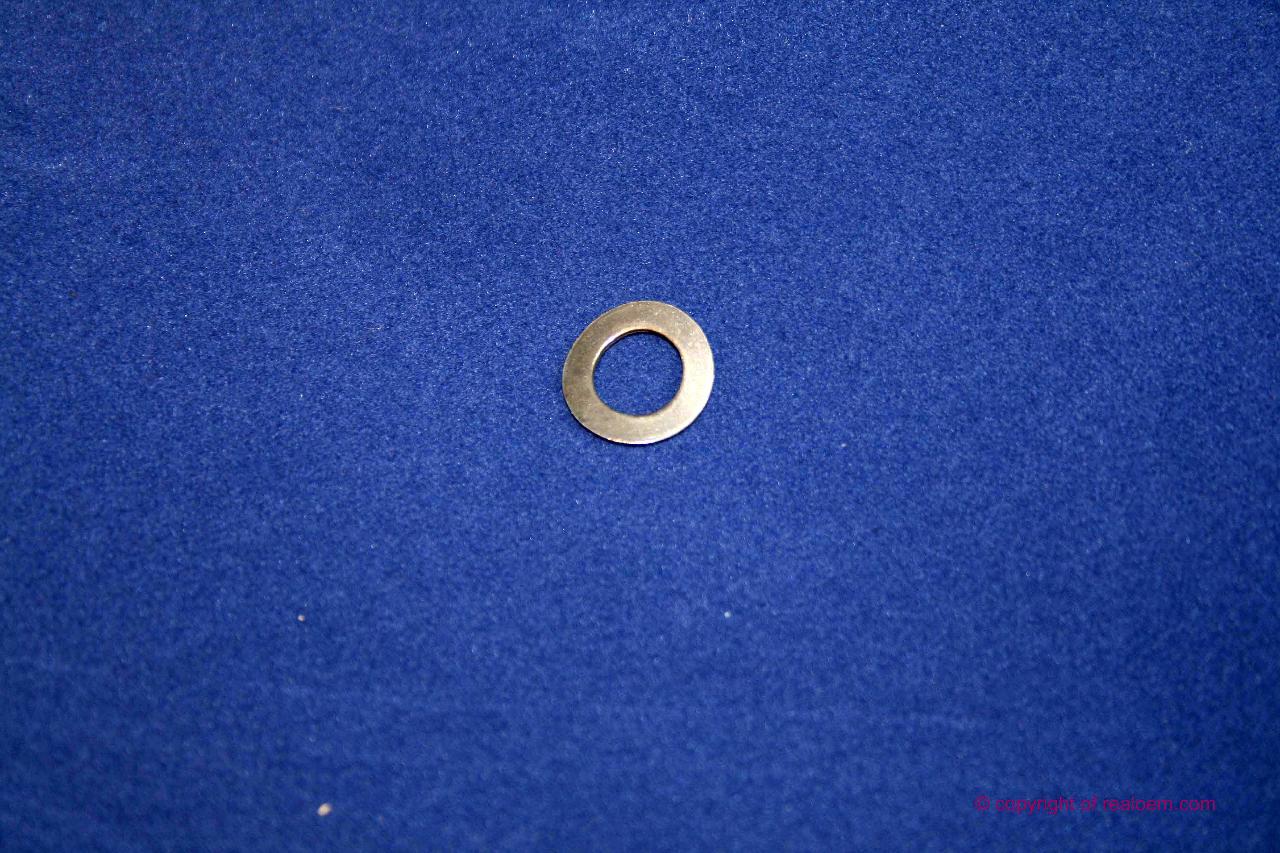

| 11 | Wave washer | B8 | 2 | 02/1962 | 12/1968 | 07119932093 | $0.38 | Shop at ECS Tuning | ||
| 12 | Hex bolt | M8X20-ZNNIV SI | 2 | 02/1962 | 12/1968 | 07119903039 | Shop at ECS Tuning | |||
| 13 | Repair kit input cylinder clutch | D=19,05MM | 1 | 02/1962 | 12/1968 | 21521102935 | $54.03 | Shop at ECS Tuning | ||
| 13 | Repair kit input cylinder clutch | 1 | 02/1962 | 12/1968 | 21521103733 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
