Input cylinder clutch for BMW 1500-2000CS 2000tilux (1966)

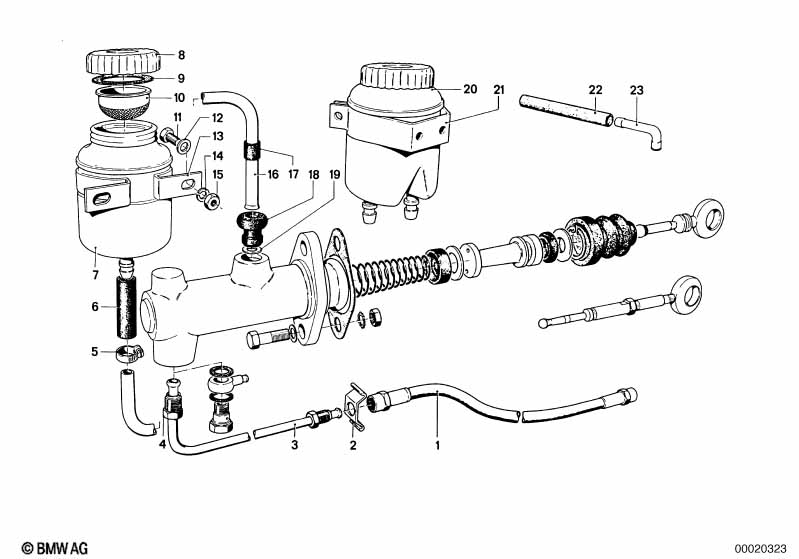

This Input cylinder clutch technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000tilux. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1966.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake hose rear | L=222MM | 1 | 34321159878 | $38.29 | Shop at ECS Tuning | ||||
| 02 | Clip | 1 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 03 | Pipe | 1 | 09/1965 | 02/1970 | 21524648101 | ENDED | Shop at ECS Tuning | |||
| 05 | Hose clamp | L=9-12 | 1 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 06 | Hose | 7.5X13.5 | X | 35006857512 | Shop at ECS Tuning | |||||
| 07 | Expansion tank | 1 | 01/1966 | 07/1968 | 34314650041 | $69.85 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover lid | 1 | 01/1966 | 07/1968 | 21521119541 | $4.27 | Shop at ECS Tuning | |||
| 09 | Gasket | 1 | 01/1966 | 07/1968 | 34321102798 | $2.82 | Shop at ECS Tuning | |||
| 10 | Strainer tube | 1 | 01/1966 | 07/1968 | 34321114836 | ENDED | Shop at ECS Tuning | |||
| 22 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 23 | Connector | 1 | 09/1965 | 01/1972 | 34321102282 | $4.16 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
