Clutch slave cylinder for BMW 1500-2000CS 1500 (1964)

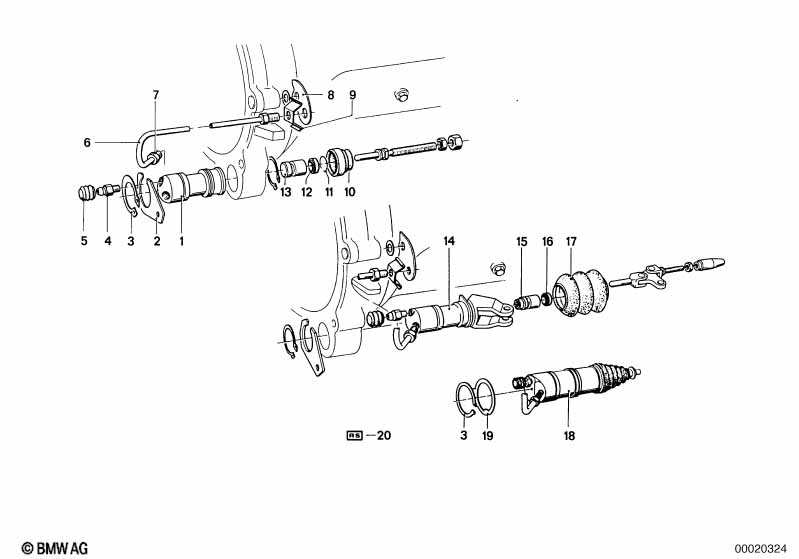

This Clutch slave cylinder technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Bracket | 1 | 21524648176 | ENDED | Shop at ECS Tuning | |||||
| 03 | Lock Ring | 28X1,5 | 1 | 07119907340 | Shop at ECS Tuning | |||||
| 06 | Pipe | 1 | 21524648154 | ENDED | Shop at ECS Tuning | |||||
| 09 | Clip | 1 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 14 | Clutch slave cylinder | D=3/4" | 1 | 04/1964 | 01/1972 | 21524648055 | ENDED | Shop at ECS Tuning | ||
| 20 | Repair kit output cylinder clutch | D=19,05 | 1 | 02/1962 | 12/1968 | 21521102934 | $47.06 | Shop at ECS Tuning | ||
| 20 | Repair kit output cylinder clutch | 1 | 02/1962 | 12/1968 | 21521103737 | ENDED | Shop at ECS Tuning | |||
| 20 | Repair kit output cylinder clutch | 1 | 04/1964 | 01/1972 | 21521102933 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
