Hose line for BMW 2500-3.3Li 3.0Si (1971)

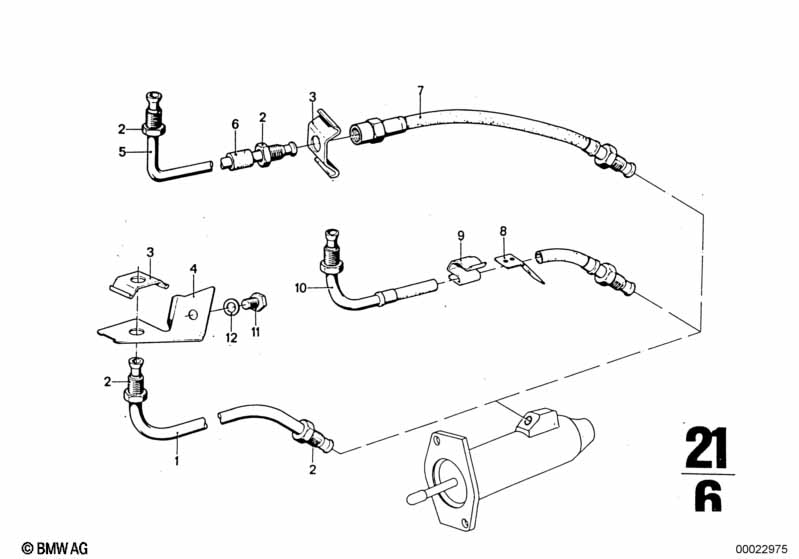

This Hose line technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Connector | M10X1 | 2 | 08/1968 | 02/1977 | 34321151806 | $1.22 | ENDED | Shop at ECS Tuning | |
| 02 | Connector | M10X1 | 2 | 08/1968 | 02/1977 | 34321151806 | $1.22 | ENDED | Shop at ECS Tuning | |
| 03 | Clip | 1 | 08/1968 | 02/1977 | 34341163565 | $0.97 | Shop at ECS Tuning | |||
| 03 | Clip | 1 | 08/1968 | 02/1977 | 34341163565 | $0.97 | Shop at ECS Tuning | |||
| 05 | Pipe | M10/M10-862MM | 1 | 07/1969 | 02/1977 | 34326755596 | $8.65 | Shop at ECS Tuning | ||
| 06 | Rubber grommet | 2 | 07/1969 | 02/1977 | 34324050540 | $1.32 | Shop at ECS Tuning | |||
| 07 | Pressure hose assy.clutch | L=363,5MM | 1 | 07/1969 | 02/1977 | 21521113181 | $67.11 | ENDED | Shop at ECS Tuning | |
| 07 | Brake hose rear | L=200MM | 1 | 07/1969 | 02/1977 | 34321159881 | $30.11 | Shop at ECS Tuning | ||
| 11 | Set bolt 10 | M10X20 | 1 | 08/1968 | 02/1977 | 07509064062 | ENDED | Shop at ECS Tuning | ||
| 11 | Set bolt 10 | M10X20 | 1 | 08/1968 | 02/1977 | 07509064062 | ENDED | Shop at ECS Tuning | ||
| 12 | Wave washer | B10-ZNS3 | 1 | 08/1968 | 02/1977 | 07119904463 | Shop at ECS Tuning | |||
| 12 | Wave washer | B10-ZNS3 | 1 | 08/1968 | 02/1977 | 07119904463 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0Si Hose line?
- This technical diagram illustrates the Hose line within the Clutch group for the 2500-3.3Li 3.0Si produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Connector (Part #34321151806).
- Which models use the hardware listed in this Hose line?
- The hardware and components featured in the Hose line are specific to the 2500-3.3Li 3.0Si produced during 1971. These technical specifications ensure that parts like the Connector (34321151806) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hose line assembly?
- Each item in the Hose line corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0Si, you can identify the Connector by locating its position on the schematic, which then links to the official BMW part number 34321151806 for the Clutch section.
