Clutch slave cylinder for BMW 2500-3.3Li 3.3Li (1975)

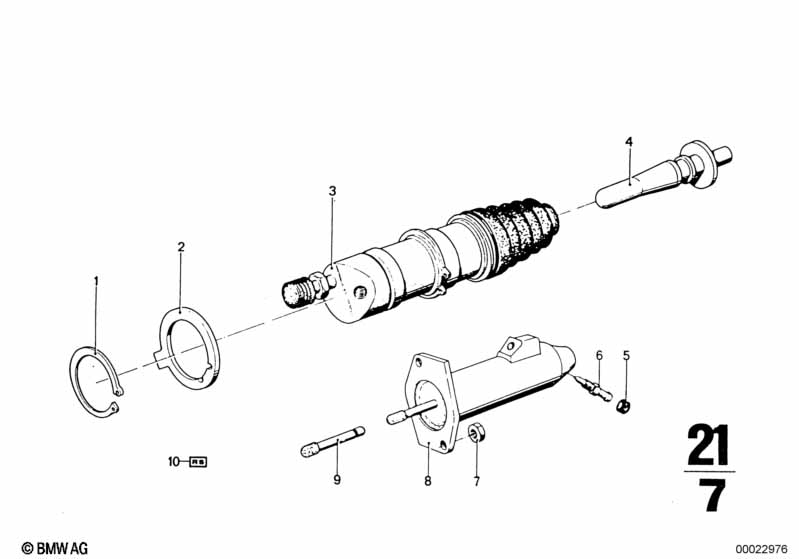

This Clutch slave cylinder technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 05 | Dust cap | 1 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 06 | Ventilation valve | 1 | 34219023168 | $8.13 | Shop at ECS Tuning | |||||
| 07 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 09/1973 | 02/1977 | 07129906196 | $1.60 | Shop at ECS Tuning | ||
| 07 | Self-locking hex nut | M8 | 2 | 09/1973 | 02/1977 | 07129922714 | $0.17 | ENDED | Shop at ECS Tuning | |
| 08 | Clutch slave cylinder | D=22,20MM | 1 | 09/1973 | 02/1977 | 21521114536 | $137.83 | +core | Shop at ECS Tuning | |
| 09 | Thrust adapter | FAG | 1 | 09/1973 | 02/1977 | 21521116359 | $18.40 | Shop at ECS Tuning | ||
| 10 | Repair kit output cylinder clutch | ATE | 1 | 09/1973 | 02/1977 | 21521113880 | $18.02 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3Li Clutch slave cylinder?
- This technical diagram illustrates the Clutch slave cylinder within the Clutch group for the 2500-3.3Li 3.3Li produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Dust cap (Part #34111153198).
- Which models use the hardware listed in this Clutch slave cylinder?
- The hardware and components featured in the Clutch slave cylinder are specific to the 2500-3.3Li 3.3Li produced during 1975. These technical specifications ensure that parts like the Dust cap (34111153198) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Clutch slave cylinder assembly?
- Each item in the Clutch slave cylinder corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3Li, you can identify the Dust cap by locating its position on the schematic, which then links to the official BMW part number 34111153198 for the Clutch section.
