4-gear transmission for BMW 2500-3.3Li 2800 (1971)

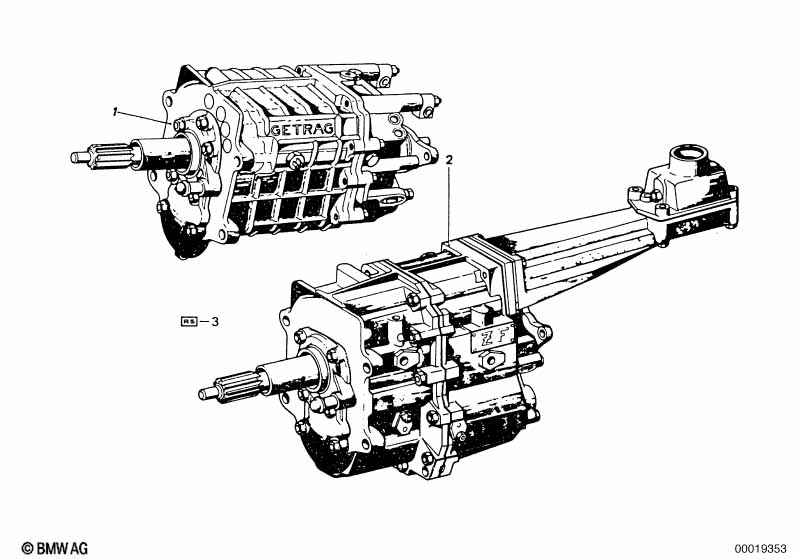

This 4-gear transmission technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP REMAN 4-gear transmission | 262/9.45-CK | 1 | 08/1968 | 02/1977 | 23001209490 | $2538.80 | Shop at ECS Tuning | ||
| 02 | Exch. 4 speed gearbox | 1 | 08/1968 | 02/1977 | 23001200858 | ENDED | Shop at ECS Tuning | |||
| -> Fg 2 210 175 / 3. 0 Cs -> Fg 2039024 / 2500 -> Fg 2181674 / 2500 Rl -> Fg 2332669 / 2800 |
||||||||||
| 03 | Asbestos-free gasket set | 1 | 23129065642 | $88.04 | Shop at ECS Tuning | |||||
| 03 | Gasket set four speed gearbox | 1 | 08/1968 | 02/1977 | 23001201750 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 4-gear transmission?
- This technical diagram illustrates the 4-gear transmission within the Manual Transmission group for the 2500-3.3Li 2800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the RP REMAN 4-gear transmission (Part #23001209490).
- Which models use the hardware listed in this 4-gear transmission?
- The hardware and components featured in the 4-gear transmission are specific to the 2500-3.3Li 2800 produced during 1971. These technical specifications ensure that parts like the RP REMAN 4-gear transmission (23001209490) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 4-gear transmission assembly?
- Each item in the 4-gear transmission corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the RP REMAN 4-gear transmission by locating its position on the schematic, which then links to the official BMW part number 23001209490 for the Manual Transmission section.
