ZF s5-16 housing+attaching parts for BMW 2500-3.3Li 2800 (1969)

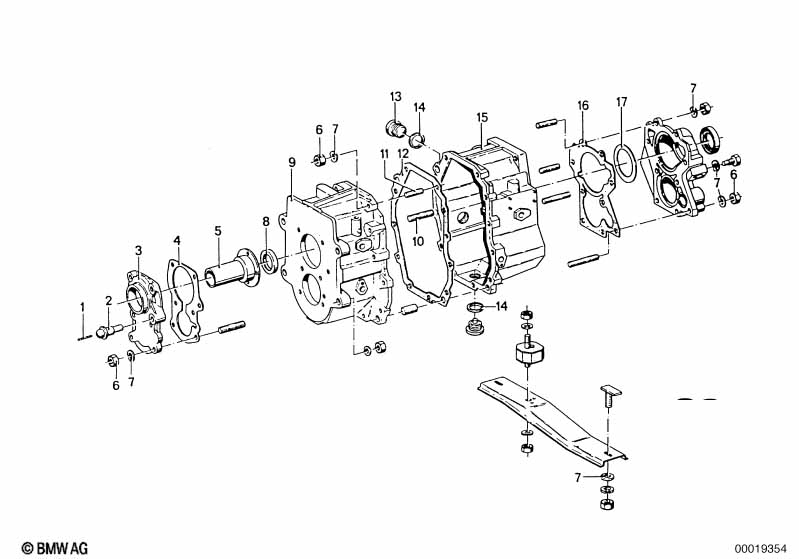

This ZF s5-16 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Felt | 1 | 21511200214 | ENDED | Shop at ECS Tuning | |||||
| 02 | Ball pin | 1 | 21511200182 | ENDED | Shop at ECS Tuning | |||||
| 03 | Centering flange | 1 | 23111201280 | ENDED | Shop at ECS Tuning | |||||
| 04 | Gasket Asbestos Free | 1 | 23111222329 | $10.34 | ENDED | Shop at ECS Tuning | ||||
| 05 | Guide bush | 1 | 23211201278 | $46.04 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8-8-ZNNIV SI | 26 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Wave washer | 8,4X15-ZNS3 | 29 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | 30X42X7 | 1 | 33122301019 | ENDED | Shop at ECS Tuning | ||||
| 09 | Housing half front | 1 | 23111201258 | ENDED | Shop at ECS Tuning | |||||
| 11 | Stud bolt | M8X22 | 9 | 07119908312 | ENDED | Shop at ECS Tuning | ||||
| 12 | Gasket Asbestos Free | 1 | 23111222328 | $8.59 | Shop at ECS Tuning | |||||
| 13 | Screw plug with O-ring | M22X1,5-ZNS3 | 1 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| 14 | Gasket ring | C22X27-CUAS | 2 | 07119963358 | ENDED | Shop at ECS Tuning | ||||
| 15 | Housing rear | 1 | 23111201260 | ENDED | Shop at ECS Tuning | |||||
| 16 | Gasket | 1 | 23111201391 | ENDED | Shop at ECS Tuning | |||||
| according to choice | ||||||||||
| 17 | Washer | 1 | 23121201281 | ENDED | Shop at ECS Tuning | |||||
| 17 | Washer | 1 | 23121201282 | ENDED | Shop at ECS Tuning | |||||
| 17 | Washer | 1 | 23121201283 | ENDED | Shop at ECS Tuning | |||||
| 17 | Washer | 1 | 23121201284 | ENDED | Shop at ECS Tuning | |||||
| 17 | Washer | 1 | 23121201285 | ENDED | Shop at ECS Tuning | |||||
| 17 | Washer | 1 | 23121201286 | ENDED | Shop at ECS Tuning | |||||
| 17 | Washer | 1 | 23121201287 | ENDED | Shop at ECS Tuning | |||||
