ZF s5-16 gear wheel set,single parts for BMW 2500-3.3Li 2800 (1971)

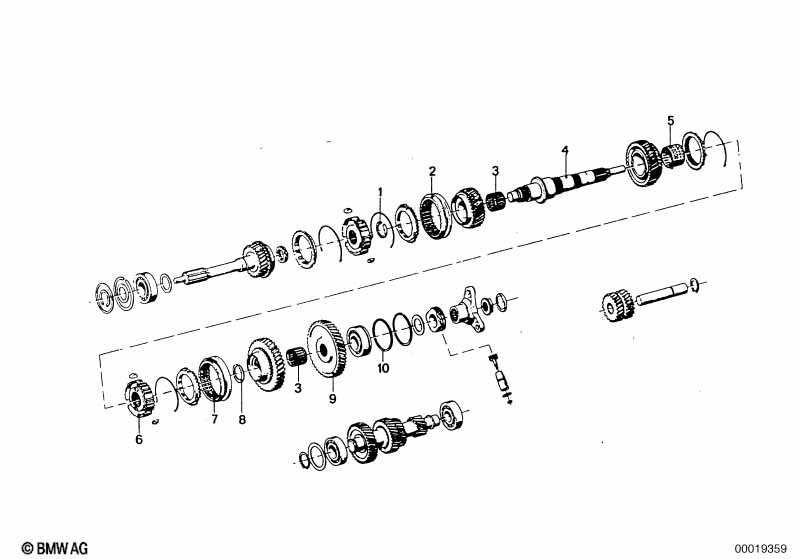

This ZF s5-16 gear wheel set,single parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| according to choice | ||||||||||
| 01 | Lock Ring | 1 | 23211201307 | ENDED | Shop at ECS Tuning | |||||
| 01 | Lock Ring | 1 | 23211201308 | ENDED | Shop at ECS Tuning | |||||
| 01 | Lock Ring | 1 | 23211201309 | ENDED | Shop at ECS Tuning | |||||
| 02 | Shift sleeve | 1 | 23231201305 | ENDED | Shop at ECS Tuning | |||||
| 03 | Needle cage | 40X36X29 | 2 | 23221201301 | $10.62 | ENDED | Shop at ECS Tuning | |||
| 04 | Main shaft | 1 | 23211201298 | ENDED | Shop at ECS Tuning | |||||
| 05 | Needle cage | 49X45X31 | 1 | 23221201313 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shift gear for 2nd. gear | 1 | 23231201314 | ENDED | Shop at ECS Tuning | |||||
| 07 | Shift sleeve | 1 | 23231201315 | ENDED | Shop at ECS Tuning | |||||
| 08 | Lock Ring | 33X2 | 1 | 23211201316 | ENDED | Shop at ECS Tuning | ||||
| 08 | Lock Ring | 33X1,9 | 1 | 23211201317 | ENDED | Shop at ECS Tuning | ||||
| 08 | Lock Ring | 33X1,8 | 1 | 23211201318 | ENDED | Shop at ECS Tuning | ||||
| 09 | Reverse gear wheel | 1 | 23221201321 | ENDED | Shop at ECS Tuning | |||||
| 10 | Washer | 1 | 23121201322 | ENDED | Shop at ECS Tuning | |||||
| 10 | Washer | 1 | 23121201323 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
