ZF s5-16 housing+attaching parts for BMW 2500-3.3Li 2800 (1971)

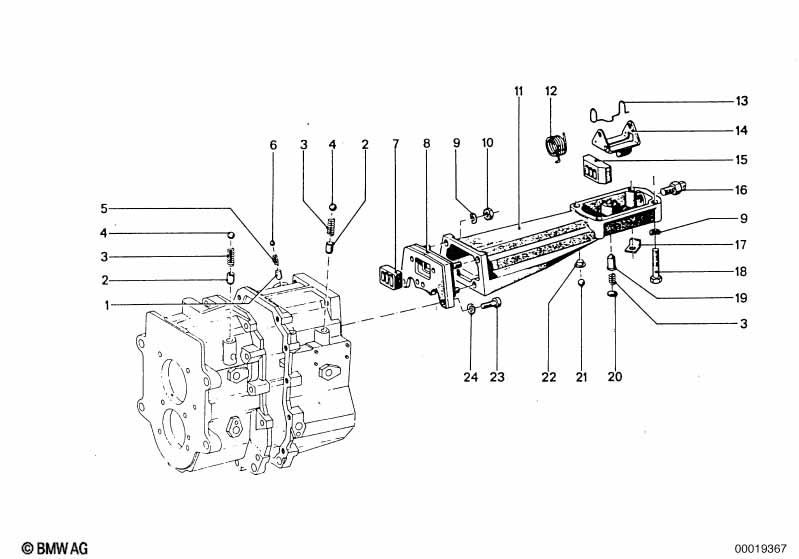

This ZF s5-16 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Insert | 1 | 23311201358 | ENDED | Shop at ECS Tuning | |||||
| 02 | Pin | 2 | 23311201356 | ENDED | Shop at ECS Tuning | |||||
| 03 | Compression spring | 3 | 23311201357 | ENDED | Shop at ECS Tuning | |||||
| 04 | Ball | 3/8"ZOLL | 2 | 07119986299 | ENDED | Shop at ECS Tuning | ||||
| 05 | Compression spring | 1 | 23311201359 | ENDED | Shop at ECS Tuning | |||||
| 07 | Guide | ZF | 1 | 23311201370 | ENDED | Shop at ECS Tuning | ||||
| 08 | Vibration damper | 1 | 23311205082 | ENDED | Shop at ECS Tuning | |||||
| 09 | Wave washer | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 11 | Shifting arm | 1 | 23111201367 | $123.88 | ENDED | Shop at ECS Tuning | ||||
| 12 | Spring | 1 | 23311201383 | ENDED | Shop at ECS Tuning | |||||
| 13 | Spring | 1 | 23311201384 | $2.32 | Shop at ECS Tuning | |||||
| 14 | Bow | 1 | 23311201380 | ENDED | Shop at ECS Tuning | |||||
| 15 | Guide | ZF | 1 | 23311201371 | ENDED | Shop at ECS Tuning | ||||
| 16 | Switch, reversing light and idle gear | M12X1,5 | 1 | 23141352153 | $13.53 | Shop at ECS Tuning | ||||
| 17 | Bracket | 2 | 61131200462 | ENDED | Shop at ECS Tuning | |||||
| 18 | Hex bolt | M8X45-8.8-ZNS3 | 8 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 19 | Pin | 1 | 23311201369 | ENDED | Shop at ECS Tuning | |||||
| 20 | Cover lid | D=16MM | 1 | 07119932412 | $0.37 | Shop at ECS Tuning | ||||
| 21 | Ball | 13/32" | 1 | 07119986405 | ENDED | Shop at ECS Tuning | ||||
| 22 | Blind plug | 1 | 23111201372 | ENDED | Shop at ECS Tuning | |||||
| 23 | Fillister-head screw | M8X20-8.8 ZN | 5 | 07119919969 | $0.78 | Shop at ECS Tuning | ||||
| 24 | Spring washer | B8 | 5 | 07119933096 | $0.18 | Shop at ECS Tuning |
