External gearshift parts/Shift lever for BMW 2500-3.3Li 2800 (1969)
This External gearshift parts/Shift lever technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gearshift rod joint | 1 | 08/1968 | 02/1977 | 23411466130 | $51.66 | ENDED | Shop at ECS Tuning | ||

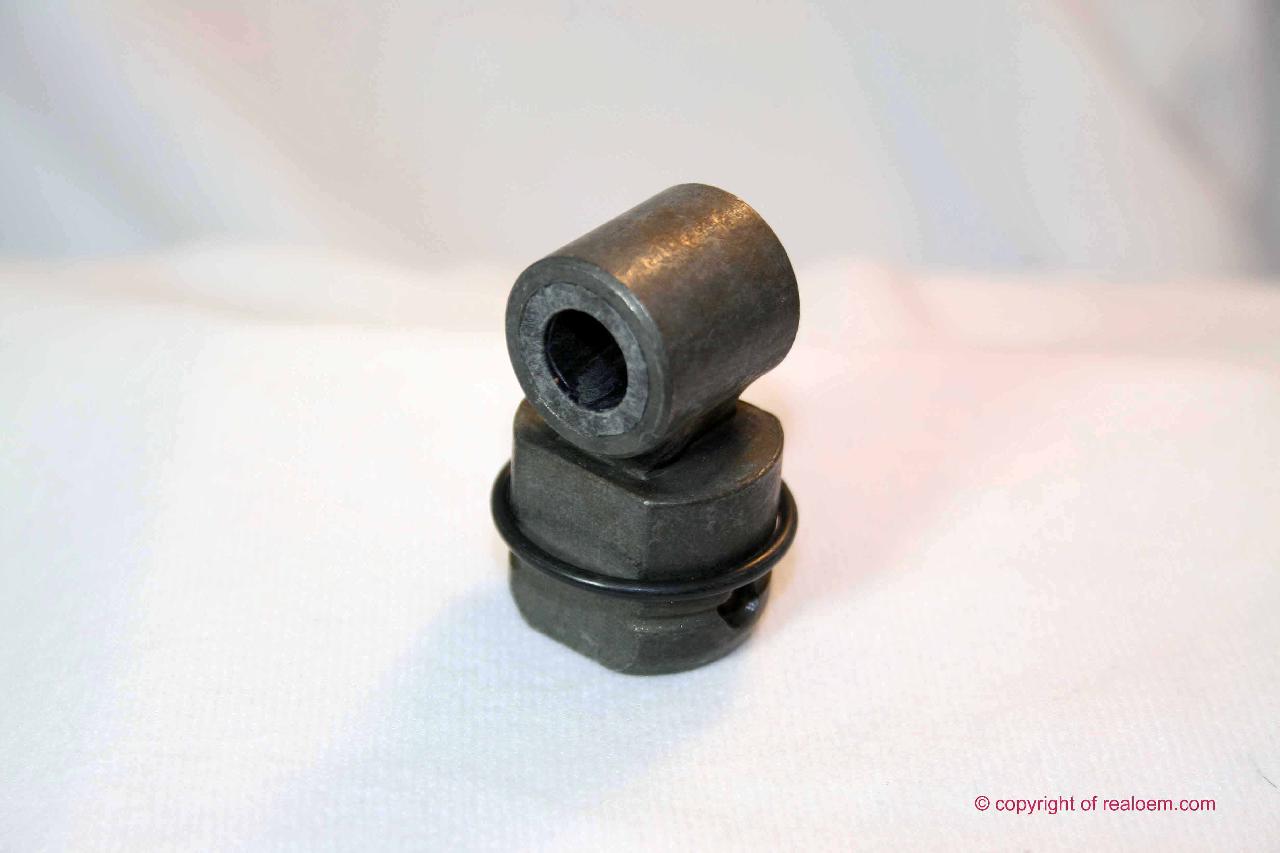

| 01 | Gearshift rod joint | SCHWARZ | 1 | 25117503525 | $37.51 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Straight selector rod | L=151MM | 1 | 25111206888 | $27.51 | Shop at ECS Tuning | ||||

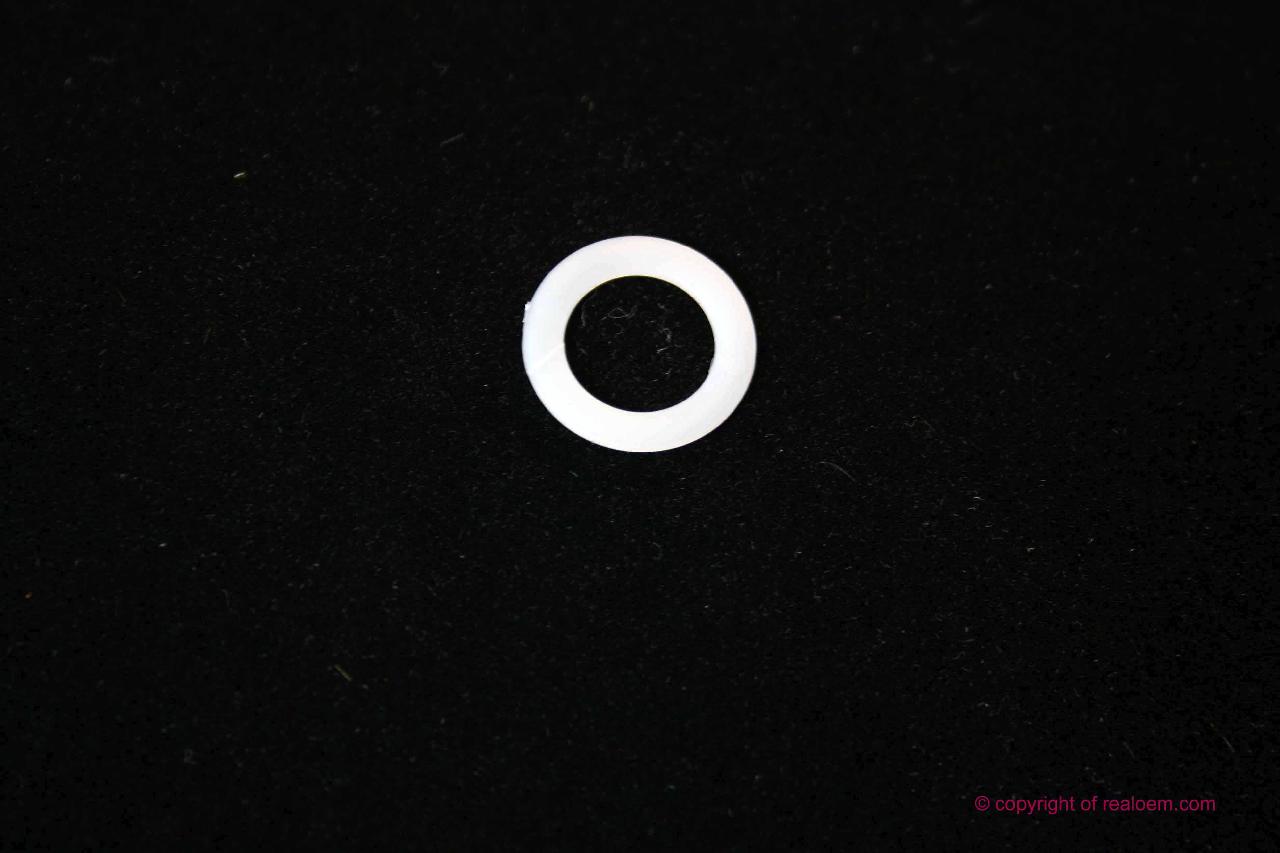

| -- | Shim | 16X10,2X0,65 | 4 | 25111220199 | $0.30 | Shop at ECS Tuning | ||||
| -- | Shift lever-lower part | 1 | 25111220213 | $23.00 | Shop at ECS Tuning | |||||
| 02 | Plastic washer | 1 | 25111434194 | $0.85 | Shop at ECS Tuning | |||||
| 03 | Tension bush | 1 | 08/1968 | 02/1977 | 23411466132 | $12.47 | Shop at ECS Tuning | |||
| 03 | Sleeve | 1 | 08/1968 | 02/1977 | 25111203132 | $4.88 | ENDED | Shop at ECS Tuning | ||
| 04 | Hex bolt | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Straight selector rod | X | 25111204364 | $30.59 | Shop at ECS Tuning | |||||
| -- | Gearshift rod joint | X | 25111205070 | ENDED | Shop at ECS Tuning | |||||
| -- | Cap | X | 25111205441 | $1.52 | Shop at ECS Tuning | |||||
| -- | Shift lever-lower part | X | 25111220217 | $21.84 | Shop at ECS Tuning | |||||
| 05 | Wave washer | 8,4X15-ZNS3 | 6 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Straight selector rod | X | 25111204364 | $30.59 | Shop at ECS Tuning | |||||
| -- | Gearshift rod joint | X | 25111205070 | ENDED | Shop at ECS Tuning | |||||
| -- | Cap | X | 25111205441 | $1.52 | Shop at ECS Tuning | |||||
| -- | Shift lever-lower part | X | 25111220217 | $21.84 | Shop at ECS Tuning | |||||
| 06 | Supporting bracket | 4 | 25111202842 | $20.64 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Straight selector rod | X | 25111204364 | $30.59 | Shop at ECS Tuning | |||||
| -- | Gearshift rod joint | X | 25111205070 | ENDED | Shop at ECS Tuning | |||||
| -- | Cap | X | 25111205441 | $1.52 | Shop at ECS Tuning | |||||
| -- | Shift lever-lower part | X | 25111220217 | $21.84 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M8X30-ZN | 4 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Straight selector rod | X | 25111204364 | $30.59 | Shop at ECS Tuning | |||||
| -- | Gearshift rod joint | X | 25111205070 | ENDED | Shop at ECS Tuning | |||||
| -- | Cap | X | 25111205441 | $1.52 | Shop at ECS Tuning | |||||
| -- | Shift lever-lower part | X | 25111220217 | $21.84 | Shop at ECS Tuning | |||||
| 08 | Shifting arm | 1 | 25111205384 | $50.29 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Straight selector rod | X | 25111204364 | $30.59 | Shop at ECS Tuning | |||||
| -- | Gearshift rod joint | X | 25111205070 | ENDED | Shop at ECS Tuning | |||||
| -- | Cap | X | 25111205441 | $1.52 | Shop at ECS Tuning | |||||
| -- | Shift lever-lower part | X | 25111220217 | $21.84 | Shop at ECS Tuning | |||||
| 09 | Ball Cup upper | 1 | 23411466110 | $8.01 | Shop at ECS Tuning | |||||
| 10 | Lock Ring | 1 | 23411466112 | $0.68 | Shop at ECS Tuning | |||||
| 12 | Dowel pin | 1 | 23411466122 | $4.42 | Shop at ECS Tuning | |||||
| 15 | Dowel pin | 1 | 23411466134 | $0.70 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
