ZF 3hp12 drive clutch A/B for BMW 1500-2000CS 1800 (1969)

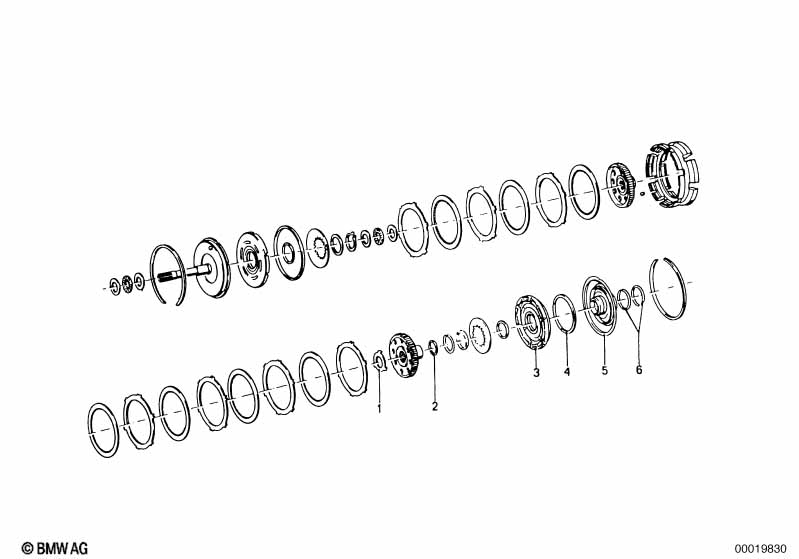

This ZF 3hp12 drive clutch A/B technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stop disk | 1 | 24231202611 | $5.80 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shim | 4,500MM | X | 24231620134 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shim | 4,400MM | X | 24231620135 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shim | 4,300MM | X | 24231620136 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shim | 4,200MM | X | 24231620137 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shim | 4,100MM | X | 24231620138 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shim | 4,000MM | X | 24231620139 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shim | 3,900MM | X | 24231620140 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shim | 3,800MM | X | 24231620141 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shim | 3,700MM | X | 24231620142 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shim | 3,600MM | X | 24231620143 | ENDED | Shop at ECS Tuning | ||||
| 03 | Piston | 1 | 24231203725 | ENDED | Shop at ECS Tuning | |||||
| 03 | Piston | 1 | 24231620145 | ENDED | Shop at ECS Tuning | |||||
| 04 | Rectangring | 80X89X2 | 1 | 24231203726 | ENDED | Shop at ECS Tuning | ||||
| 04 | Rectangring | 95X102X2 | 1 | 24231620146 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hub | 1 | 24231202610 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hub | 1 | 24231203728 | $154.01 | ENDED | Shop at ECS Tuning | ||||
| 06 | O-ring | 2 | 24231620148 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 ZF 3hp12 drive clutch A/B?
- This technical diagram illustrates the ZF 3hp12 drive clutch A/B within the Automatic transmission group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Stop disk (Part #24231202611).
- Which models use the hardware listed in this ZF 3hp12 drive clutch A/B?
- The hardware and components featured in the ZF 3hp12 drive clutch A/B are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Stop disk (24231202611) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ZF 3hp12 drive clutch A/B assembly?
- Each item in the ZF 3hp12 drive clutch A/B corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Stop disk by locating its position on the schematic, which then links to the official BMW part number 24231202611 for the Automatic transmission section.
