ZF 3hp12 gear shift/parking lock for BMW 1500-2000CS 1800 (1969)

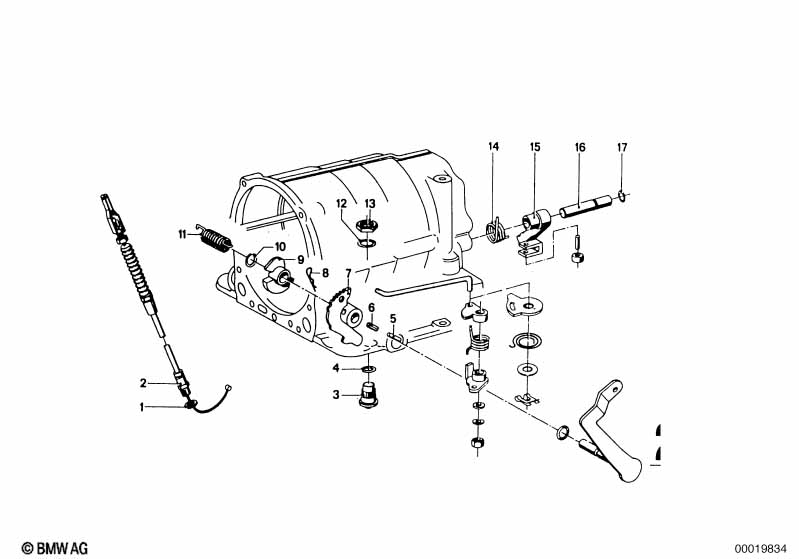

This ZF 3hp12 gear shift/parking lock technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Schema P-R-0-A-2-1 | |||||||||
| 01 | Gasket ring | A10X13,5-CU | 2 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 02 | Accelerator bowden cable | 1 | 24341201563 | $66.42 | Shop at ECS Tuning | |||||
| 03 | Sleeve | 1 | 24231201566 | ENDED | Shop at ECS Tuning | |||||
| 04 | O-ring | 9X2 | 1 | 24511200388 | ENDED | Shop at ECS Tuning | ||||
| 06 | Roll pin | 6X28 | 1 | 07119941381 | $1.22 | Shop at ECS Tuning | ||||
| 07 | Pawl | 1 | 24341201095 | ENDED | Shop at ECS Tuning | |||||
| 08 | Clamping spring | 2 | 24341200715 | ENDED | Shop at ECS Tuning | |||||
| 09 | Cam,accelerator | 1 | 24341201093 | ENDED | Shop at ECS Tuning | |||||
| 10 | Snap ring | 1 | 24341200713 | ENDED | Shop at ECS Tuning | |||||
| 11 | Tension spring | 1 | 24341202612 | ENDED | Shop at ECS Tuning | |||||

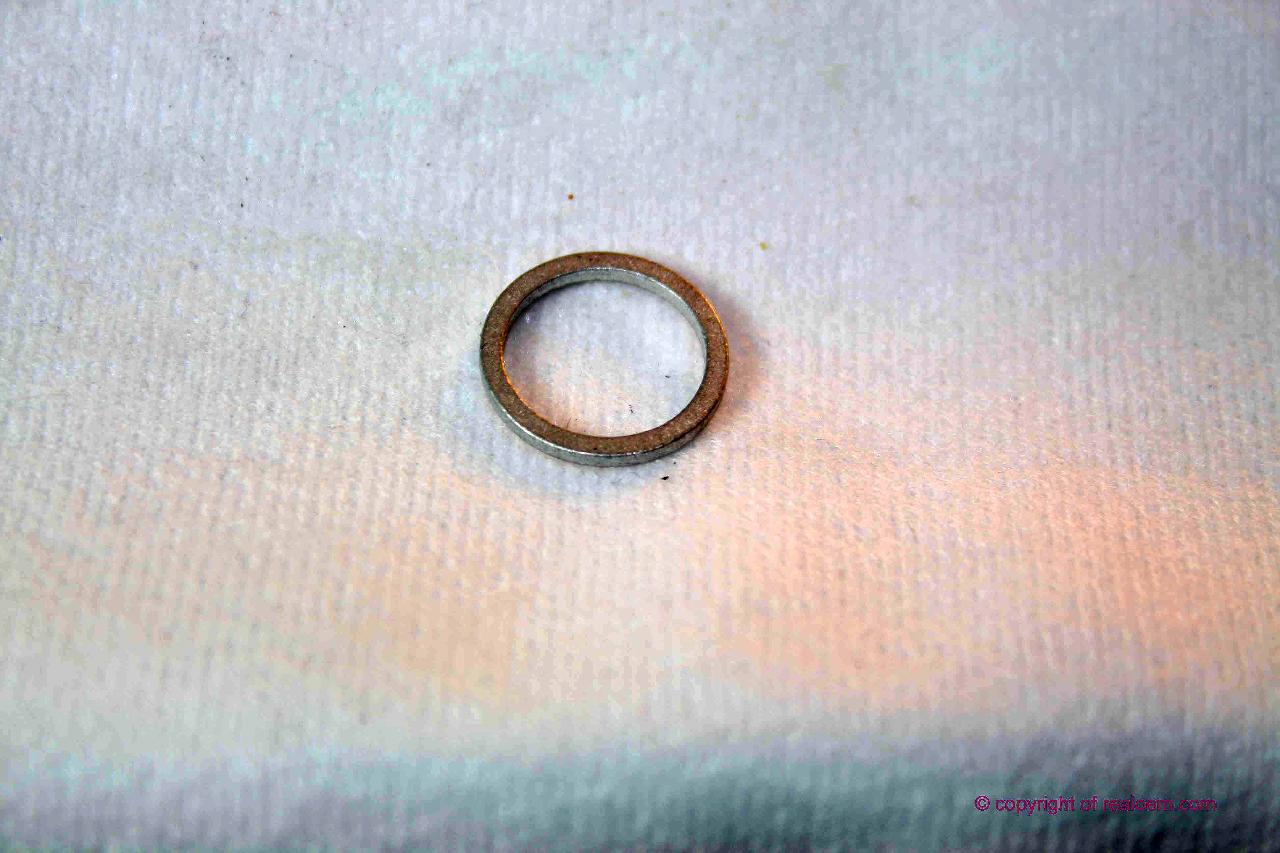

| 12 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Hex nut | 1 | 24511200387 | ENDED | Shop at ECS Tuning | |||||
| 14 | Retainer spring | 1 | 24341666391 | ENDED | Shop at ECS Tuning | |||||
| 15 | Pawl | 1 | 24341204734 | ENDED | Shop at ECS Tuning | |||||
| 16 | Pin | 1 | 24341666393 | ENDED | Shop at ECS Tuning | |||||
| 17 | O-ring | 1 | 24121666395 | $1.62 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
