ZF 3hp12 housing parts/oil pan for BMW 1500-2000CS 1800 (1969)

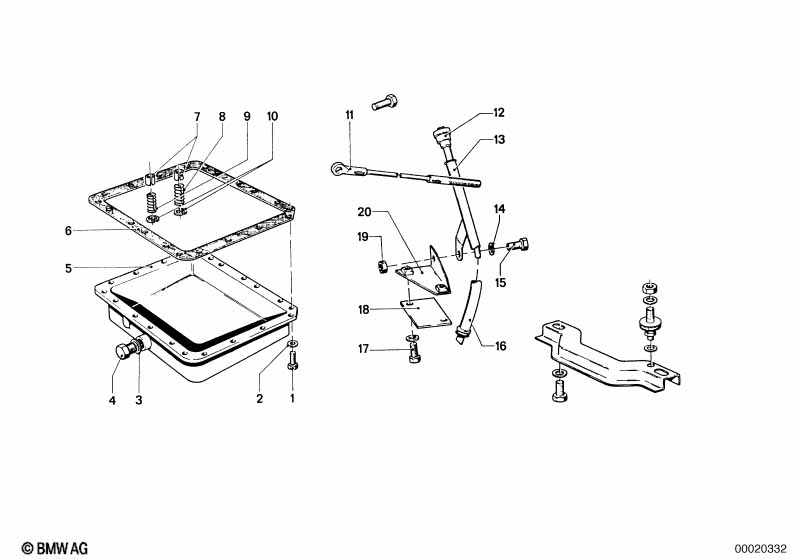

This ZF 3hp12 housing parts/oil pan technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Schema R-1-2-A-0-P | |||||||||
| 01 | Hex bolt | M6X12-8.8-ZNNIV | 20 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | 1 | 24111215097 | $1.64 | Shop at ECS Tuning | |||||
| 04 | Screw plug | AM18X1,5 | 1 | 07119919246 | $2.40 | ENDED | Shop at ECS Tuning | |||
| 05 | Oil Pan | 1 | 24111606172 | $803.52 | ENDED | Shop at ECS Tuning | ||||
| 06 | Gasket Asbestos Free | 1 | 24111606171 | $17.79 | Shop at ECS Tuning | |||||
| 07 | Sleeve | 4 | 24341606168 | $4.39 | Shop at ECS Tuning | |||||
| 09 | Compression spring | D=0,8/L=26,6 | 2 | 24341606170 | $6.09 | Shop at ECS Tuning | ||||
| 10 | Lock Ring | 10X1 | 2 | 24111218535 | $1.02 | Shop at ECS Tuning | ||||
| 11 | Rope | 1 | 24711790110 | ENDED | Shop at ECS Tuning | |||||
| 12 | Dipstick | 1 | 24111200867 | ENDED | Shop at ECS Tuning | |||||
| 13 | Filler pipe | 1 | 24111602100 | ENDED | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M6X18 | 1 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 16 | O-ring | 17X2,5 | 1 | 24111602108 | ENDED | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
