ZF 3hp20 planet wheel set for BMW 2500-3.3Li 2800 (1969)

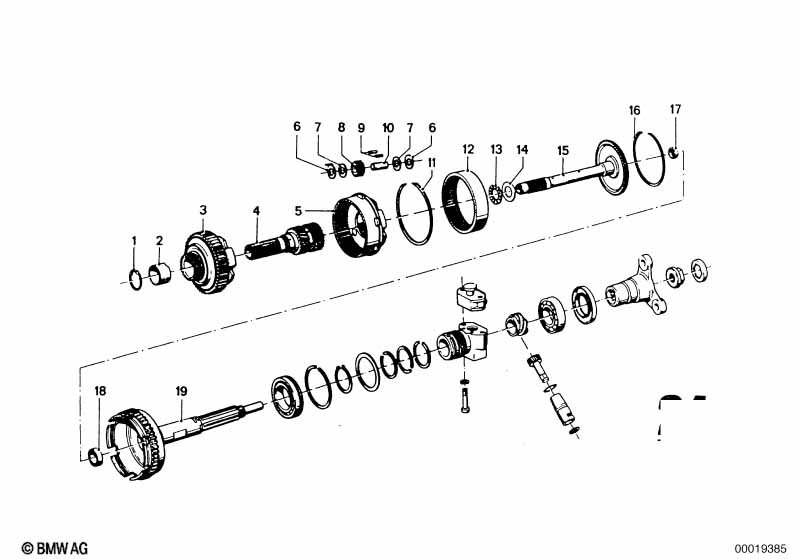

This ZF 3hp20 planet wheel set technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lock Ring | A30X1,5 | 1 | 24221201071 | ENDED | Shop at ECS Tuning | ||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 02 | Spacer bush | 1 | 24221201072 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 03 | Planet wheel set | 1 | 24221202682 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 04 | Hollow gear wheel,input | Z=29 | 1 | 24221201074 | ENDED | Shop at ECS Tuning | ||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 05 | Planet wheel set | 1 | 24221201075 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 06 | Shim | 0,500MM | 6 | 02/1969 | 02/1977 | 24221204180 | ENDED | Shop at ECS Tuning | ||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl Getr.-Nr. -> 20350 / 2500 A Getr.-Nr. -> 20350 / 2800 A |
||||||||||
| 06 | Shim | 0,300MM | 6 | 24221201077 | ENDED | Shop at ECS Tuning | ||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl -> Getr.-Nr. 20350 / 2500 A -> Getr.-Nr. 20350 / 2800 A |
||||||||||
| 07 | Stop disk | 1,000MM | 3 | 02/1969 | 02/1977 | 24221204179 | $2.68 | ENDED | Shop at ECS Tuning | |
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl Getr.-Nr. -> 20350 / 2500 A Getr.-Nr. -> 20350 / 2800 A |
||||||||||
| 07 | Stop disk | S=0,7 /3HP20 | 6 | 24221201078 | ENDED | Shop at ECS Tuning | ||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl -> Getr.-Nr. 20350 / 2500 A -> Getr.-Nr. 20350 / 2800 A |
||||||||||
| 08 | Planet wheel set | 1 | 24221201080 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 09 | Bearing needle | AIX15,8 | 60 | 07119986704 | ENDED | Shop at ECS Tuning | ||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 10 | Pin | 3 | 24221201079 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 11 | Ring | 1 | 24221201081 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 12 | Hollow gear wheel,output | 1 | 24221201082 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 13 | Ax-bearing cage | 1 | 24221200436 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 14 | Ax-washer | 1 | 24211202609 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 15 | Intermediate shaft | 1 | 24211203626 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl Getr.Nr. -> 2755 |
||||||||||
| 16 | Spring washer | 1 | 24211201084 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 17 | Cover | 1 | 24211202683 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 18 | Grooved ball bearing | 6002 | 1 | 07119981034 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Output shaft | X | 24211204494 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl Getr.-Nr. -> 27538 |
||||||||||
| 18 | Grooved ball bearing | 160 02 | 1 | 07119981701 | ENDED | Shop at ECS Tuning | ||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl -> Getr.-Nr. 27538 |
||||||||||
| 19 | Output shaft | 1 | 02/1969 | 02/1977 | 24211204494 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Grooved ball bearing | 6002 | X | 02/1969 | 02/1977 | 07119981034 | Shop at ECS Tuning | |||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
