ZF 3hp20 planet wheel set for BMW 2500-3.3Li 2800 (1969)

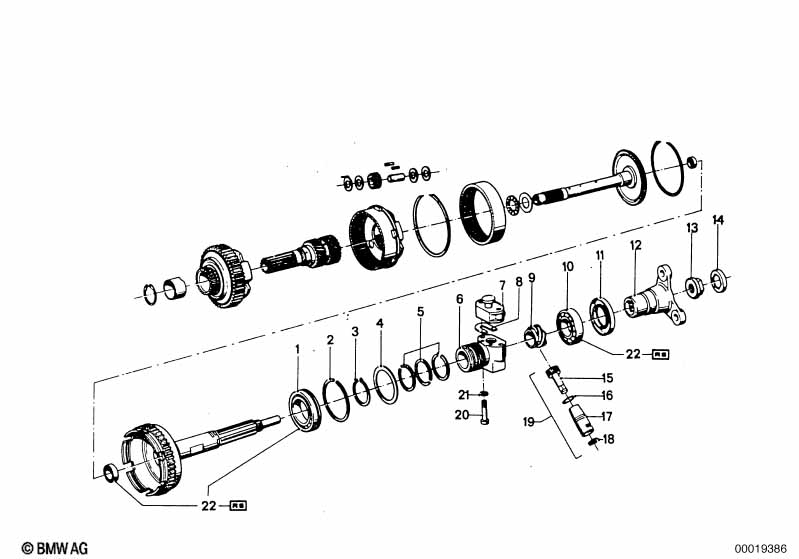

This ZF 3hp20 planet wheel set technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ball bearing | 1 | 24121201086 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 02 | Snap ring | SP72 | 1 | 07119933305 | ENDED | Shop at ECS Tuning | ||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 03 | Lock Ring | 45X2,5 | 1 | 07119934241 | ENDED | Shop at ECS Tuning | ||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 04 | Shim | 56X72X0,1 | 1 | 24121630259 | ENDED | Shop at ECS Tuning | ||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl ww |
||||||||||
| 04 | Shim | 56X72X0,3 | 1 | 24121630260 | ENDED | Shop at ECS Tuning | ||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl ww |
||||||||||
| 05 | Rectangring | 40/36,3X2 | 3 | 07119933705 | ENDED | Shop at ECS Tuning | ||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 06 | Regulator hub | 1 | 24321200443 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 07 | Voltage regulator | 1 | 24321204375 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl -> Getr.-Nr. 30238 / 2500 A |
||||||||||
| 08 | Plate | 1 | 24321204856 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl Getr.-Nr. -> 30328 |
||||||||||
| 09 | Speedometer drive | 1 | 24211200394 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 10 | Grooved ball bearing | 35X62X14 | 1 | 07119981054 | $32.53 | ENDED | Shop at ECS Tuning | |||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 11 | Shaft seal | 1 | 24121630281 | $21.63 | ENDED | Shop at ECS Tuning | ||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 12 | Drive flange | 10 MM | 1 | 24211201089 | ENDED | Shop at ECS Tuning | ||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl -> Getr.-Nr. 22010 |
||||||||||
| 16 | O-ring | 19X1,8 | 1 | 24211218739 | $1.58 | ENDED | Shop at ECS Tuning | |||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl Getr.-Nr. -> 22675 |
||||||||||
| 16 | O-ring | 18 X 2,4 | 1 | 02/1969 | 02/1977 | 24278627913 | Shop at ECS Tuning | |||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl -> Getr.-Nr. 22675 |
||||||||||
| 18 | Shaft seal | 8X11,5X3 | 1 | 02/1969 | 02/1977 | 24211200139 | $16.96 | ENDED | Shop at ECS Tuning | |
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl -> Getr.-Nr. 22675 |
||||||||||
| 19 | Speedometer drive | 1 | 24211204137 | $92.61 | ENDED | Shop at ECS Tuning | ||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl Getr.-Nr. -> 22675 |
||||||||||
| 20 | Fillister-head screw | M6X40 | 2 | 07119919497 | ENDED | Shop at ECS Tuning | ||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl |
||||||||||
| 22 | Ball bearing | 1 | 02/1969 | 02/1977 | 24121202896 | ENDED | Shop at ECS Tuning | |||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl -> Getr.-Nr. 27538 |
||||||||||
| 22 | Repair kit ball bearing | 1 | 24121204495 | ENDED | Shop at ECS Tuning | |||||
| -> Fg 2452178 / 2500 A -> Fg 2470764 / 2500 A Rl Getr.-Nr. -> 27538 |
||||||||||
