Automatic transmission for BMW 2500-3.3Li 3.3L (1974)

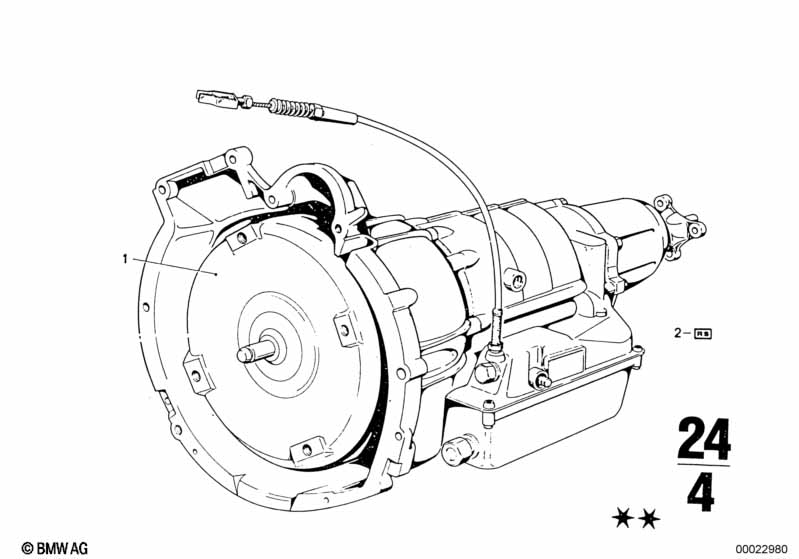

This Automatic transmission technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. torque converter | D=21MM-L- | 1 | 09/1973 | 02/1977 | 24401205826 | ENDED | Shop at ECS Tuning | ||
| 02 | Gasket set automatik transmission | 3HP22 | 1 | 24001206408 | $156.40 | ENDED | Shop at ECS Tuning | |||
| 02 | Repair set ax-bearing | 3HP22 | 1 | 24001206499 | $66.27 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3L Automatic transmission?
- This technical diagram illustrates the Automatic transmission within the Automatic transmission group for the 2500-3.3Li 3.3L produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Exch. torque converter (Part #24401205826).
- Which models use the hardware listed in this Automatic transmission?
- The hardware and components featured in the Automatic transmission are specific to the 2500-3.3Li 3.3L produced during 1974. These technical specifications ensure that parts like the Exch. torque converter (24401205826) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Automatic transmission assembly?
- Each item in the Automatic transmission corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3L, you can identify the Exch. torque converter by locating its position on the schematic, which then links to the official BMW part number 24401205826 for the Automatic transmission section.
