Bw 65 housing+attach.parts for BMW 2500-3.3Li 3.0L (1975)

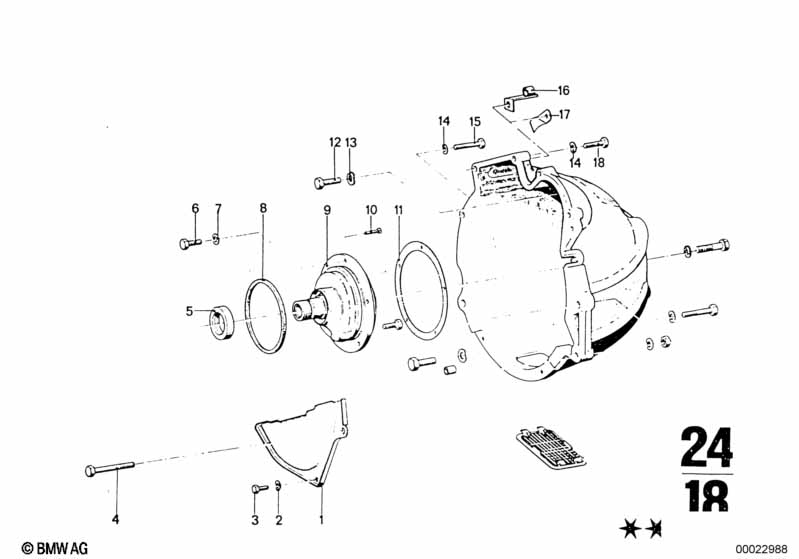

This Bw 65 housing+attach.parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering plate | 1 | 21111255083 | $10.16 | ENDED | Shop at ECS Tuning | ||||
| 01 | Covering plate | 1 | 21111255083 | $10.16 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X16-8.8-ZNS3 | 2 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X16-8.8-ZNS3 | 2 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M10X75 | 1 | 08/1971 | 02/1977 | 07119912677 | $1.18 | Shop at ECS Tuning | ||
| 04 | Hex bolt | M10X75 | 1 | 08/1971 | 02/1977 | 07119912677 | $1.18 | Shop at ECS Tuning | ||
| 05 | Gasket ring | 1 | 24311203255 | $14.40 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 05 | Gasket ring | 1 | 24311203255 | $14.40 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pipe | X | 24421206213 | ENDED | Shop at ECS Tuning | |||||
| -- | Pipe | X | 24421206213 | ENDED | Shop at ECS Tuning | |||||
| 06 | Screw | M8X25 | 5 | 24341203227 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 06 | Screw | M8X25 | 5 | 24341203227 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pipe | X | 24421206213 | ENDED | Shop at ECS Tuning | |||||
| -- | Pipe | X | 24421206213 | ENDED | Shop at ECS Tuning | |||||
| 07 | Washer | 5 | 24421205696 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 07 | Washer | 5 | 24421205696 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Pipe | X | 24421206213 | ENDED | Shop at ECS Tuning | |||||
| -- | Pipe | X | 24421206213 | ENDED | Shop at ECS Tuning | |||||
| 08 | O-ring | 1 | 24311203265 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 08 | O-ring | 1 | 24311203265 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Pipe | X | 24421206213 | ENDED | Shop at ECS Tuning | |||||
| -- | Pipe | X | 24421206213 | ENDED | Shop at ECS Tuning | |||||
| 09 | Oil pump | 1 | 24311209935 | $1350.36 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 09 | Oil pump | 1 | 24311209935 | $1350.36 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pipe | X | 24421206213 | ENDED | Shop at ECS Tuning | |||||
| -- | Pipe | X | 24421206213 | ENDED | Shop at ECS Tuning | |||||
| 10 | Screw | 1 | 24421203267 | ENDED | Shop at ECS Tuning | |||||
| 10 | Screw | 1 | 24421203267 | ENDED | Shop at ECS Tuning | |||||
| 11 | Gasket ring | 1 | 24421205061 | $1.75 | ENDED | Shop at ECS Tuning | ||||
| 11 | Gasket ring | 1 | 24421205061 | $1.75 | ENDED | Shop at ECS Tuning | ||||
| 12 | Screw | 2 | 24101203201 | ENDED | Shop at ECS Tuning | |||||
| 12 | Screw | 2 | 24101203201 | ENDED | Shop at ECS Tuning | |||||
| 13 | Wave washer | 2 | 24101205058 | ENDED | Shop at ECS Tuning | |||||
| 13 | Wave washer | 2 | 24101205058 | ENDED | Shop at ECS Tuning | |||||
| 14 | Wave washer | 8,4X15-ZNS3 | 7 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Wave washer | 8,4X15-ZNS3 | 7 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 16 | Clamp | 1 | 24111204114 | ENDED | Shop at ECS Tuning | |||||
| 16 | Clamp | 1 | 24111204114 | ENDED | Shop at ECS Tuning | |||||
| 17 | Shackle | 1 | 24111203008 | ENDED | Shop at ECS Tuning | |||||
| 17 | Shackle | 1 | 24111203008 | ENDED | Shop at ECS Tuning | |||||
| 18 | Hex bolt | M8X35 | 5 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M8X35 | 5 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
