Bw 65 housing+attach.parts for BMW 2500-3.3Li 3.3L (1974)

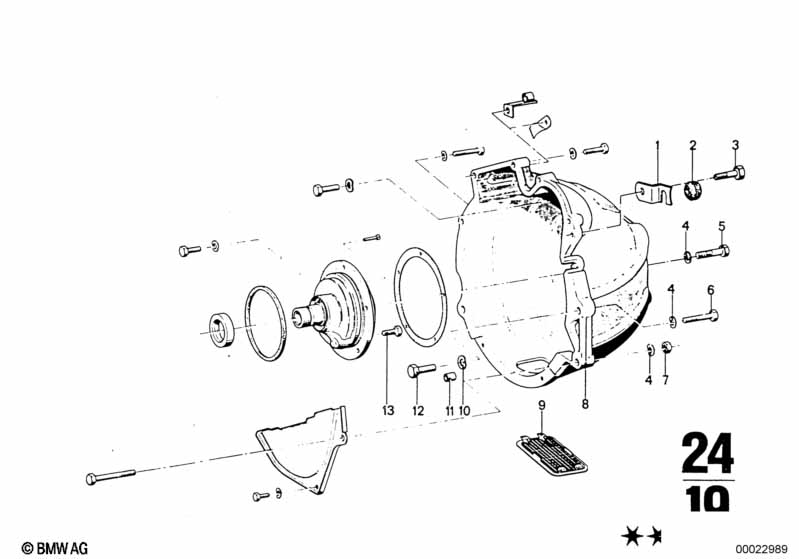

This Bw 65 housing+attach.parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Holder | 1 | 24111205402 | $1.29 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rubber grommet | 1 | 61131362325 | $0.50 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M8X30-ZN | 1 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 04 | Wave washer | B10-ZNS3 | 3 | 07119904463 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M10X45 | 1 | 07119913855 | $0.88 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex bolt | M10X55-10.9ZNS3 | 2 | 07119905161 | $0.96 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M10-8-ZNS | 1 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 08 | Converter housing | 1 | 24411203200 | ENDED | Shop at ECS Tuning | |||||
| 09 | Protection grid f additional fan | 1 | 24411203203 | $3.18 | ENDED | Shop at ECS Tuning | ||||
| 10 | Wave washer | 2 | 24101205059 | ENDED | Shop at ECS Tuning | |||||
| 11 | Dowel | D=14,5/11,0MM | 2 | 24411200459 | $13.83 | ENDED | Shop at ECS Tuning | |||
| 12 | Screw | 2 | 24101203202 | ENDED | Shop at ECS Tuning | |||||
| 13 | Screw | 5 | 24421203266 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
