Bw 65 housing+attach.parts for BMW 2500-3.3Li 3.0L (1975)

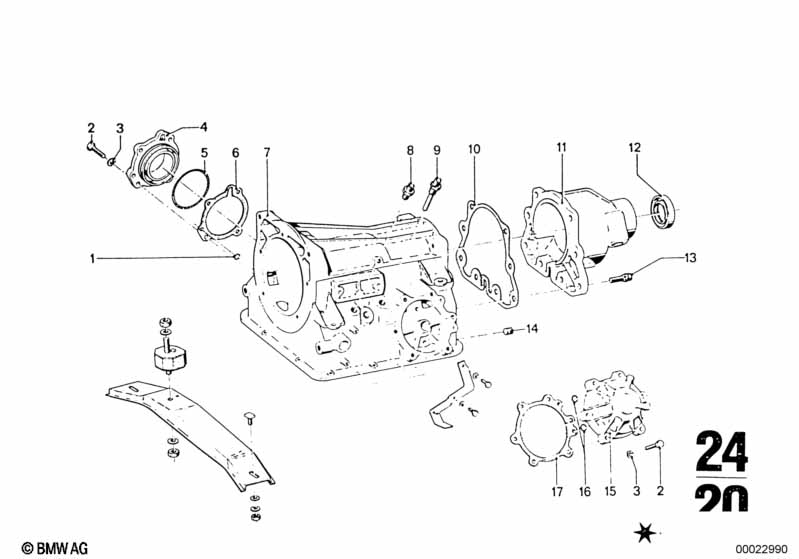

This Bw 65 housing+attach.parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | O-ring | 1 | 24341203224 | ENDED | Shop at ECS Tuning | |||||
| 01 | O-ring | 1 | 24341203224 | ENDED | Shop at ECS Tuning | |||||
| 02 | Screw | M8X25 | 10 | 24341203227 | ENDED | Shop at ECS Tuning | ||||
| 02 | Screw | M8X25 | 10 | 24341203227 | ENDED | Shop at ECS Tuning | ||||
| 03 | Washer | 10 | 24421205696 | ENDED | Shop at ECS Tuning | |||||
| 03 | Washer | 10 | 24421205696 | ENDED | Shop at ECS Tuning | |||||
| 04 | Cover | 1 | 24341203225 | ENDED | Shop at ECS Tuning | |||||
| 04 | Cover | 1 | 24341203225 | ENDED | Shop at ECS Tuning | |||||
| 05 | O-ring | 1 | 24341203221 | ENDED | Shop at ECS Tuning | |||||
| 05 | O-ring | 1 | 24341203221 | ENDED | Shop at ECS Tuning | |||||
| 06 | Gasket | 1 | 24341203226 | $1.85 | ENDED | Shop at ECS Tuning | ||||
| 06 | Gasket | 1 | 24341203226 | $1.85 | ENDED | Shop at ECS Tuning | ||||
| 07 | Transmission housing | 1 | 24101204476 | ENDED | Shop at ECS Tuning | |||||
| 07 | Transmission housing | 1 | 24101204476 | ENDED | Shop at ECS Tuning | |||||
| 08 | Connector | 1 | 24301203212 | ENDED | Shop at ECS Tuning | |||||
| 08 | Connector | 1 | 24301203212 | ENDED | Shop at ECS Tuning | |||||
| 09 | non-return valve | 1 | 24301203213 | ENDED | Shop at ECS Tuning | |||||
| 09 | non-return valve | 1 | 24301203213 | ENDED | Shop at ECS Tuning | |||||
| 10 | Gasket Asbestos Free | 1 | 24101203520 | ENDED | Shop at ECS Tuning | |||||
| 10 | Gasket Asbestos Free | 1 | 24101203520 | ENDED | Shop at ECS Tuning | |||||
| 11 | Drive extension | 1 | 24101203516 | ENDED | Shop at ECS Tuning | |||||
| 11 | Drive extension | 1 | 24101203516 | ENDED | Shop at ECS Tuning | |||||
| 12 | Shaft seal | 1 | 24101203519 | $21.04 | Shop at ECS Tuning | |||||
| 12 | Shaft seal | 1 | 24101203519 | $21.04 | Shop at ECS Tuning | |||||
| 13 | Screw | 8 | 24101203522 | ENDED | Shop at ECS Tuning | |||||
| 13 | Screw | 8 | 24101203522 | ENDED | Shop at ECS Tuning | |||||
| 14 | Blind plug | 1 | 24341204473 | ENDED | Shop at ECS Tuning | |||||
| 14 | Blind plug | 1 | 24341204473 | ENDED | Shop at ECS Tuning | |||||
| 15 | Cover | 1 | 24341203228 | ENDED | Shop at ECS Tuning | |||||
| 15 | Cover | 1 | 24341203228 | ENDED | Shop at ECS Tuning | |||||
| 16 | O-ring | 2 | 24341203235 | ENDED | Shop at ECS Tuning | |||||
| 16 | O-ring | 2 | 24341203235 | ENDED | Shop at ECS Tuning | |||||
| 17 | Gasket Asbestos Free | 1 | 24341203236 | ENDED | Shop at ECS Tuning | |||||
| 17 | Gasket Asbestos Free | 1 | 24341203236 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0L Bw 65 housing+attach.parts?
- This technical diagram illustrates the Bw 65 housing+attach.parts within the Automatic transmission group for the 2500-3.3Li 3.0L produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the O-ring (Part #24341203224).
- Which models use the hardware listed in this Bw 65 housing+attach.parts?
- The hardware and components featured in the Bw 65 housing+attach.parts are specific to the 2500-3.3Li 3.0L produced during 1975. These technical specifications ensure that parts like the O-ring (24341203224) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bw 65 housing+attach.parts assembly?
- Each item in the Bw 65 housing+attach.parts corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0L, you can identify the O-ring by locating its position on the schematic, which then links to the official BMW part number 24341203224 for the Automatic transmission section.
