Bw 65 oil pan/oil fill-in tube for BMW 2500-3.3Li 3.0L (1975)

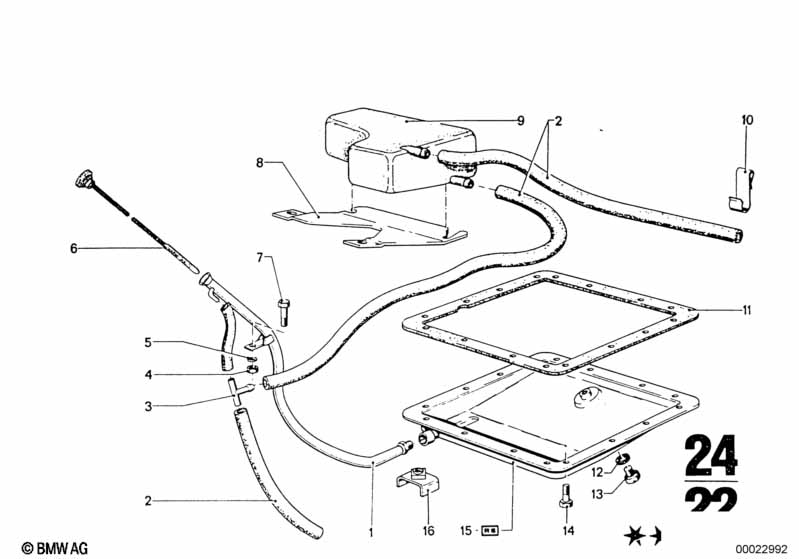

This Bw 65 oil pan/oil fill-in tube technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil fill-in tube | 1 | 08/1971 | 02/1977 | 24111205103 | $129.46 | ENDED | Shop at ECS Tuning | ||
| 01 | Oil fill-in tube | 1 | 08/1971 | 02/1977 | 24111205103 | $129.46 | ENDED | Shop at ECS Tuning | ||
| 02 | Fuel hose | 8X13MM | 4 | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 02 | Fuel hose | 8X13MM | 4 | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 03 | Distribution piece | 1 | 08/1971 | 02/1977 | 24111203862 | $0.94 | ENDED | Shop at ECS Tuning | ||
| 03 | Distribution piece | 1 | 08/1971 | 02/1977 | 24111203862 | $0.94 | ENDED | Shop at ECS Tuning | ||
| 04 | Hex nut | M6-8-ZNNIV SI | 2 | 08/1971 | 02/1977 | 07119905543 | $0.38 | Shop at ECS Tuning | ||
| 04 | Hex nut | M6-8-ZNNIV SI | 2 | 08/1971 | 02/1977 | 07119905543 | $0.38 | Shop at ECS Tuning | ||
| 06 | Dipstick | 1 | 08/1971 | 02/1977 | 24111205301 | ENDED | Shop at ECS Tuning | |||
| 06 | Dipstick | 1 | 08/1971 | 02/1977 | 24111205301 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex bolt | M6X18 | 2 | 08/1971 | 02/1977 | 23317545769 | $0.67 | Shop at ECS Tuning | ||
| 07 | Hex bolt | M6X18 | 2 | 08/1971 | 02/1977 | 23317545769 | $0.67 | Shop at ECS Tuning | ||
| 11 | Gasket Asbestos Free | 1 | 24111203500 | $21.00 | Shop at ECS Tuning | |||||
| 11 | Gasket Asbestos Free | 1 | 24111203500 | $21.00 | Shop at ECS Tuning | |||||
| 12 | Gasket ring | 1 | 24111203499 | ENDED | Shop at ECS Tuning | |||||
| 12 | Gasket ring | 1 | 24111203499 | ENDED | Shop at ECS Tuning | |||||
| 13 | Screw plug | 1 | 24111203498 | ENDED | Shop at ECS Tuning | |||||
| 13 | Screw plug | 1 | 24111203498 | ENDED | Shop at ECS Tuning | |||||
| 14 | Screw | 12 | 24111203501 | ENDED | Shop at ECS Tuning | |||||
| 14 | Screw | 12 | 24111203501 | ENDED | Shop at ECS Tuning | |||||
| 15 | Repair kit oil pan | 1 | 24111205355 | ENDED | Shop at ECS Tuning | |||||
| 15 | Repair kit oil pan | 1 | 24111205355 | ENDED | Shop at ECS Tuning |
