Bw 65 rear clutch for BMW 2500-3.3Li 3.0L (1975)

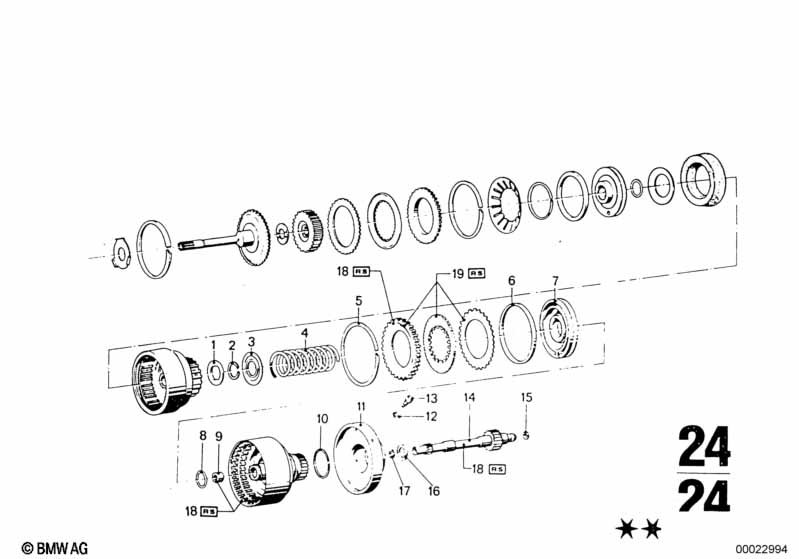

This Bw 65 rear clutch technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stop disk | BW-65 | 1 | 24231203330 | ENDED | Shop at ECS Tuning | ||||
| 01 | Stop disk | BW-65 | 1 | 24231203330 | ENDED | Shop at ECS Tuning | ||||
| 01 | Stop disk | 1 | 24231205482 | ENDED | Shop at ECS Tuning | |||||
| 01 | Stop disk | 1 | 24231205482 | ENDED | Shop at ECS Tuning | |||||
| 01 | Stop disk | 1 | 24231205484 | ENDED | Shop at ECS Tuning | |||||
| 01 | Stop disk | 1 | 24231205484 | ENDED | Shop at ECS Tuning | |||||
| 02 | Snap ring | 1 | 24231203327 | ENDED | Shop at ECS Tuning | |||||
| 02 | Snap ring | 1 | 24231203327 | ENDED | Shop at ECS Tuning | |||||
| 03 | Spring pocket | 1 | 24231203326 | ENDED | Shop at ECS Tuning | |||||
| 03 | Spring pocket | 1 | 24231203326 | ENDED | Shop at ECS Tuning | |||||
| 04 | Spring | 1 | 24231203325 | ENDED | Shop at ECS Tuning | |||||
| 04 | Spring | 1 | 24231203325 | ENDED | Shop at ECS Tuning | |||||
| 05 | Snap ring | 1 | 24221203305 | ENDED | Shop at ECS Tuning | |||||
| 05 | Snap ring | 1 | 24221203305 | ENDED | Shop at ECS Tuning | |||||
| 06 | Gasket ring | 1 | 24231203320 | ENDED | Shop at ECS Tuning | |||||
| 06 | Gasket ring | 1 | 24231203320 | ENDED | Shop at ECS Tuning | |||||
| 07 | Piston | 1 | 24231203315 | ENDED | Shop at ECS Tuning | |||||
| 07 | Piston | 1 | 24231203315 | ENDED | Shop at ECS Tuning | |||||
| 07 | Piston | 1 | 24231205698 | ENDED | Shop at ECS Tuning | |||||
| 07 | Piston | 1 | 24231205698 | ENDED | Shop at ECS Tuning | |||||
| 08 | O-ring | 1 | 24231203314 | ENDED | Shop at ECS Tuning | |||||
| 08 | O-ring | 1 | 24231203314 | ENDED | Shop at ECS Tuning | |||||
| 09 | Needle bearing | 1 | 24231203313 | ENDED | Shop at ECS Tuning | |||||
| 09 | Needle bearing | 1 | 24231203313 | ENDED | Shop at ECS Tuning | |||||
| 10 | Piston ring | 3 | 24231203329 | ENDED | Shop at ECS Tuning | |||||
| 10 | Piston ring | 3 | 24231203329 | ENDED | Shop at ECS Tuning | |||||
| 11 | Plate | 1 | 24221203338 | ENDED | Shop at ECS Tuning | |||||
| 11 | Plate | 1 | 24221203338 | ENDED | Shop at ECS Tuning | |||||
| 12 | Washer | 3 | 24221203342 | ENDED | Shop at ECS Tuning | |||||
| 12 | Washer | 3 | 24221203342 | ENDED | Shop at ECS Tuning | |||||
| 13 | Screw | 3 | 24221203341 | ENDED | Shop at ECS Tuning | |||||
| 13 | Screw | 3 | 24221203341 | ENDED | Shop at ECS Tuning | |||||
| 14 | Sun shaft | 1 | 24221207382 | ENDED | Shop at ECS Tuning | |||||
| 14 | Sun shaft | 1 | 24221207382 | ENDED | Shop at ECS Tuning | |||||
| 15 | Piston ring | 1 | 24221203336 | ENDED | Shop at ECS Tuning | |||||
| 15 | Piston ring | 1 | 24221203336 | ENDED | Shop at ECS Tuning | |||||
| 16 | AX bearing | 1 | 24221203317 | ENDED | Shop at ECS Tuning | |||||
| 16 | AX bearing | 1 | 24221203317 | ENDED | Shop at ECS Tuning | |||||
| 17 | Piston ring | 2 | 24221203319 | ENDED | Shop at ECS Tuning | |||||
| 17 | Piston ring | 2 | 24221203319 | ENDED | Shop at ECS Tuning | |||||
| 17 | Piston ring | 2 | 24221203337 | ENDED | Shop at ECS Tuning | |||||
| 17 | Piston ring | 2 | 24221203337 | ENDED | Shop at ECS Tuning | |||||
| 18 | Cylinder | 1 | 24211204195 | ENDED | Shop at ECS Tuning | |||||
| 18 | Cylinder | 1 | 24211204195 | ENDED | Shop at ECS Tuning | |||||
| 19 | Repair kit clutch disk | 1 | 24231205712 | ENDED | Shop at ECS Tuning | |||||
| 19 | Repair kit clutch disk | 1 | 24231205712 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0L Bw 65 rear clutch?
- This technical diagram illustrates the Bw 65 rear clutch within the Automatic transmission group for the 2500-3.3Li 3.0L produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Stop disk (Part #24231203330).
- Which models use the hardware listed in this Bw 65 rear clutch?
- The hardware and components featured in the Bw 65 rear clutch are specific to the 2500-3.3Li 3.0L produced during 1975. These technical specifications ensure that parts like the Stop disk (24231203330) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bw 65 rear clutch assembly?
- Each item in the Bw 65 rear clutch corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0L, you can identify the Stop disk by locating its position on the schematic, which then links to the official BMW part number 24231203330 for the Automatic transmission section.
