Bw 65 planet wheel set/output for BMW 2500-3.3Li 3.0L (1975)

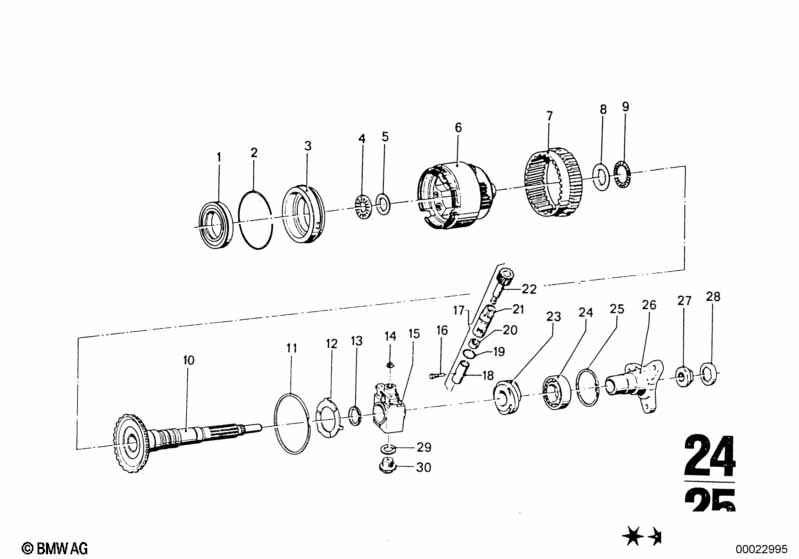

This Bw 65 planet wheel set/output technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Freewheel 2nd gear | 1 | 24221203363 | ENDED | Shop at ECS Tuning | |||||
| 01 | Freewheel 2nd gear | 1 | 24221203363 | ENDED | Shop at ECS Tuning | |||||
| 02 | Snap ring | 1 | 24221203362 | ENDED | Shop at ECS Tuning | |||||
| 02 | Snap ring | 1 | 24221203362 | ENDED | Shop at ECS Tuning | |||||
| 03 | Ring | 1 | 24221203359 | ENDED | Shop at ECS Tuning | |||||
| 03 | Ring | 1 | 24221203359 | ENDED | Shop at ECS Tuning | |||||
| 04 | AX bearing | 1 | 24221203364 | ENDED | Shop at ECS Tuning | |||||
| 04 | AX bearing | 1 | 24221203364 | ENDED | Shop at ECS Tuning | |||||
| 05 | Stop disk | 1 | 24221203365 | ENDED | Shop at ECS Tuning | |||||
| 05 | Stop disk | 1 | 24221203365 | ENDED | Shop at ECS Tuning | |||||
| 06 | Planet wheel carrier | 1 | 24221205407 | ENDED | Shop at ECS Tuning | |||||
| 06 | Planet wheel carrier | 1 | 24221205407 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hollow gear wheel,input | 1 | 24221203371 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hollow gear wheel,input | 1 | 24221203371 | ENDED | Shop at ECS Tuning | |||||
| 08 | Stop disk | 1 | 24221203374 | ENDED | Shop at ECS Tuning | |||||
| 08 | Stop disk | 1 | 24221203374 | ENDED | Shop at ECS Tuning | |||||
| 09 | AX bearing | 1 | 24221203373 | ENDED | Shop at ECS Tuning | |||||
| 09 | AX bearing | 1 | 24221203373 | ENDED | Shop at ECS Tuning | |||||
| 10 | Output shaft | 1 | 24221203366 | ENDED | Shop at ECS Tuning | |||||
| 10 | Output shaft | 1 | 24221203366 | ENDED | Shop at ECS Tuning | |||||
| 11 | Snap ring | 1 | 24221203372 | ENDED | Shop at ECS Tuning | |||||
| 11 | Snap ring | 1 | 24221203372 | ENDED | Shop at ECS Tuning | |||||
| 12 | Stop disk | 1 | 24221205063 | ENDED | Shop at ECS Tuning | |||||
| 12 | Stop disk | 1 | 24221205063 | ENDED | Shop at ECS Tuning | |||||
| 13 | Piston ring | 3 | 24221203377 | ENDED | Shop at ECS Tuning | |||||
| 13 | Piston ring | 3 | 24221203377 | ENDED | Shop at ECS Tuning | |||||
| 14 | Snap ring | 1 | 24311203510 | ENDED | Shop at ECS Tuning | |||||
| 14 | Snap ring | 1 | 24311203510 | ENDED | Shop at ECS Tuning | |||||
| 15 | Voltage regulator | 1 | 24311203503 | $41.29 | ENDED | Shop at ECS Tuning | ||||
| 15 | Voltage regulator | 1 | 24311203503 | $41.29 | ENDED | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X20 | 1 | 23211207159 | $2.75 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X20 | 1 | 23211207159 | $2.75 | Shop at ECS Tuning | ||||
| 17 | Speedometer drive | 1 | 24211205066 | ENDED | Shop at ECS Tuning | |||||
| 17 | Speedometer drive | 1 | 24211205066 | ENDED | Shop at ECS Tuning | |||||
| 19 | O-ring | 19X1,8 | 1 | 24211218739 | $1.58 | ENDED | Shop at ECS Tuning | |||
| 19 | O-ring | 19X1,8 | 1 | 24211218739 | $1.58 | ENDED | Shop at ECS Tuning | |||
| 23 | Speedometer drive | 1 | 24311203513 | ENDED | Shop at ECS Tuning | |||||
| 23 | Speedometer drive | 1 | 24311203513 | ENDED | Shop at ECS Tuning | |||||
| 24 | Roller bearing | 1 | 24101203517 | ENDED | Shop at ECS Tuning | |||||
| 24 | Roller bearing | 1 | 24101203517 | ENDED | Shop at ECS Tuning | |||||
| 25 | Spring washer | 1 | 24101203518 | ENDED | Shop at ECS Tuning | |||||
| 25 | Spring washer | 1 | 24101203518 | ENDED | Shop at ECS Tuning | |||||
| 26 | Output flange | 1 | 24101203704 | ENDED | Shop at ECS Tuning | |||||
| 26 | Output flange | 1 | 24101203704 | ENDED | Shop at ECS Tuning | |||||
| 27 | Collar nut | 1 | 24101203525 | $25.11 | ENDED | Shop at ECS Tuning | ||||
| 27 | Collar nut | 1 | 24101203525 | $25.11 | ENDED | Shop at ECS Tuning | ||||
| 28 | Securing plate | 1 | 24101203526 | $3.83 | ENDED | Shop at ECS Tuning | ||||
| 28 | Securing plate | 1 | 24101203526 | $3.83 | ENDED | Shop at ECS Tuning | ||||
| 29 | Wave washer | 1 | 24311203511 | ENDED | Shop at ECS Tuning | |||||
| 29 | Wave washer | 1 | 24311203511 | ENDED | Shop at ECS Tuning | |||||
| 30 | Screw | 1 | 24311203512 | ENDED | Shop at ECS Tuning | |||||
| 30 | Screw | 1 | 24311203512 | ENDED | Shop at ECS Tuning |
