Bw 65 pressure and suction pipes for BMW 2500-3.3Li 3.3L (1974)

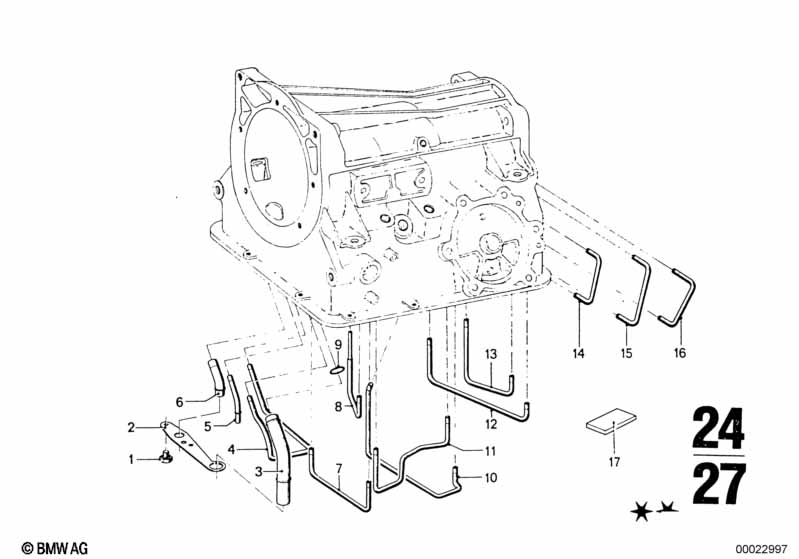

This Bw 65 pressure and suction pipes technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Screw | M5X6 | 2 | 24421203276 | ENDED | Shop at ECS Tuning | ||||
| 02 | Plate | 1 | 24421203275 | ENDED | Shop at ECS Tuning | |||||
| 03 | Pipe | 1 | 24421203271 | ENDED | Shop at ECS Tuning | |||||
| 03 | Pipe | 1 | 24421206213 | ENDED | Shop at ECS Tuning | |||||
| 04 | Pipe | 1 | 24421203274 | ENDED | Shop at ECS Tuning | |||||
| 05 | Pipe | 1 | 24421203273 | ENDED | Shop at ECS Tuning | |||||
| 06 | Pipe | 1 | 24421203272 | ENDED | Shop at ECS Tuning | |||||
| 07 | Pipe | 1 | 24311203470 | ENDED | Shop at ECS Tuning | |||||
| 08 | Pipe | 1 | 24311203471 | ENDED | Shop at ECS Tuning | |||||
| 09 | O-ring | 1 | 24421203268 | ENDED | Shop at ECS Tuning | |||||
| 10 | Pipe | 1 | 24311203478 | ENDED | Shop at ECS Tuning | |||||
| 11 | Pipe | 1 | 24311203472 | ENDED | Shop at ECS Tuning | |||||
| 12 | Pipe | 1 | 24311203474 | ENDED | Shop at ECS Tuning | |||||
| 13 | Pipe | 1 | 24311203943 | ENDED | Shop at ECS Tuning | |||||
| 14 | Pipe | 1 | 24311203475 | ENDED | Shop at ECS Tuning | |||||
| 15 | Pipe | 1 | 24311203477 | ENDED | Shop at ECS Tuning | |||||
| 16 | Pipe | 1 | 24311203476 | ENDED | Shop at ECS Tuning | |||||
| 17 | Magnet | 1 | 24111206468 | $4.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3L Bw 65 pressure and suction pipes?
- This technical diagram illustrates the Bw 65 pressure and suction pipes within the Automatic transmission group for the 2500-3.3Li 3.3L produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Screw (Part #24421203276).
- Which models use the hardware listed in this Bw 65 pressure and suction pipes?
- The hardware and components featured in the Bw 65 pressure and suction pipes are specific to the 2500-3.3Li 3.3L produced during 1974. These technical specifications ensure that parts like the Screw (24421203276) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bw 65 pressure and suction pipes assembly?
- Each item in the Bw 65 pressure and suction pipes corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3L, you can identify the Screw by locating its position on the schematic, which then links to the official BMW part number 24421203276 for the Automatic transmission section.
