Bw 65 control unit+attach.parts for BMW 2500-3.3Li 3.0L (1975)

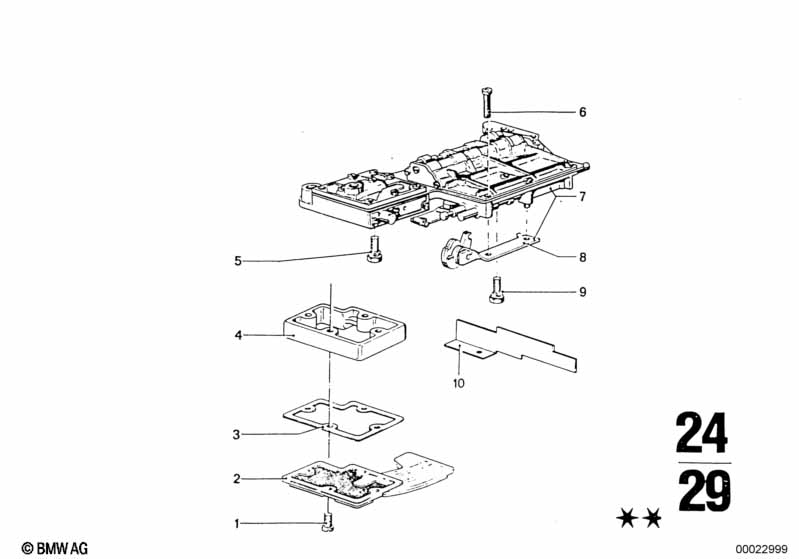

This Bw 65 control unit+attach.parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Screw | 4 | 24311205357 | ENDED | Shop at ECS Tuning | |||||
| 01 | Screw | 4 | 24311205357 | ENDED | Shop at ECS Tuning | |||||
| 01 | Screw | 4 | 24331203447 | ENDED | Shop at ECS Tuning | |||||
| 01 | Screw | 4 | 24331203447 | ENDED | Shop at ECS Tuning | |||||
| 02 | Oil strainer | 1 | 24311207079 | $22.88 | ENDED | Shop at ECS Tuning | ||||
| 02 | Oil strainer | 1 | 24311207079 | $22.88 | ENDED | Shop at ECS Tuning | ||||
| 03 | Gasket Asbestos Free | 1 | 24311204158 | $5.93 | Shop at ECS Tuning | |||||
| 03 | Gasket Asbestos Free | 1 | 24311204158 | $5.93 | Shop at ECS Tuning | |||||
| 04 | Intermediate piece | 1 | 24311205356 | ENDED | Shop at ECS Tuning | |||||
| 04 | Intermediate piece | 1 | 24311205356 | ENDED | Shop at ECS Tuning | |||||
| 04 | Intermediate piece | 1 | 24311206239 | ENDED | Shop at ECS Tuning | |||||
| 04 | Intermediate piece | 1 | 24311206239 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hex bolt | 1 | 24311203468 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hex bolt | 1 | 24311203468 | ENDED | Shop at ECS Tuning | |||||
| 06 | Screw | 2 | 24311207405 | ENDED | Shop at ECS Tuning | |||||
| 06 | Screw | 2 | 24311207405 | ENDED | Shop at ECS Tuning | |||||
| 07 | AT-control valve assy | 1 | 24311205434 | ENDED | Shop at ECS Tuning | |||||
| 07 | AT-control valve assy | 1 | 24311205434 | ENDED | Shop at ECS Tuning | |||||
| 08 | Cam disc | 1 | 24311207414 | ENDED | Shop at ECS Tuning | |||||
| 08 | Cam disc | 1 | 24311207414 | ENDED | Shop at ECS Tuning | |||||
| 09 | Hex bolt | 2 | 24311203469 | ENDED | Shop at ECS Tuning | |||||
| 09 | Hex bolt | 2 | 24311203469 | ENDED | Shop at ECS Tuning | |||||
| 10 | Intermediate plate | 1 | 24311205376 | ENDED | Shop at ECS Tuning | |||||
| 10 | Intermediate plate | 1 | 24311205376 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
