ZF 3hp22 drive clutch B for BMW 2500-3.3Li 3.3Li (1975)

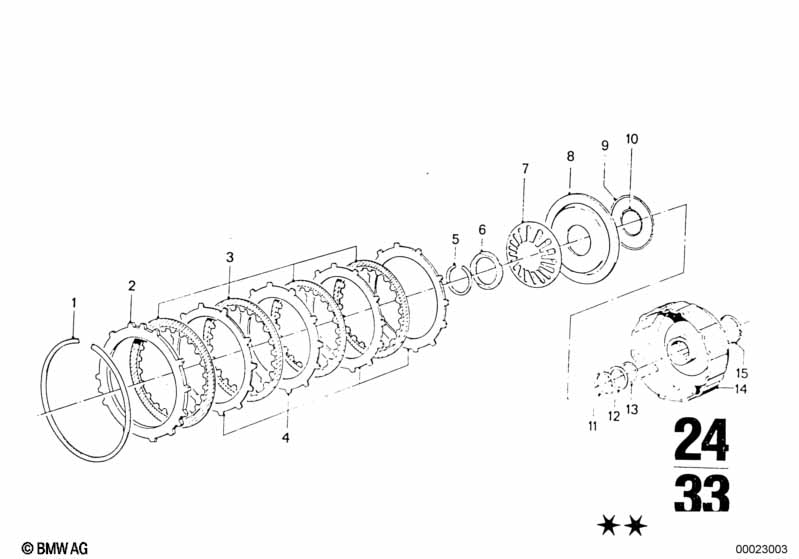

This ZF 3hp22 drive clutch B technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Snap ring | 1 | 24231217134 | $1.33 | ENDED | Shop at ECS Tuning | ||||
| 01 | Snap ring | 1 | 24231217134 | $1.33 | ENDED | Shop at ECS Tuning | ||||
| 02 | Disc | 1 | 24231205937 | $27.82 | ENDED | Shop at ECS Tuning | ||||
| 02 | Disc | 1 | 24231205937 | $27.82 | ENDED | Shop at ECS Tuning | ||||
| 03 | Clutch disc | 4 | 24231215770 | $12.49 | Shop at ECS Tuning | |||||
| 03 | Clutch disc | 4 | 24231215770 | $12.49 | Shop at ECS Tuning | |||||
| 04 | Outer disc | 4 | 24231205935 | $20.51 | Shop at ECS Tuning | |||||
| 04 | Outer disc | 4 | 24231205935 | $20.51 | Shop at ECS Tuning | |||||
| 05 | Snap ring | 1 | 24231205932 | $1.42 | ENDED | Shop at ECS Tuning | ||||
| 05 | Snap ring | 1 | 24231205932 | $1.42 | ENDED | Shop at ECS Tuning | ||||
| 06 | Circlip | 1 | 24231205931 | $1.73 | ENDED | Shop at ECS Tuning | ||||
| 06 | Circlip | 1 | 24231205931 | $1.73 | ENDED | Shop at ECS Tuning | ||||
| 07 | Diaphragm spring | 1 | 24231205930 | $8.85 | ENDED | Shop at ECS Tuning | ||||
| 07 | Diaphragm spring | 1 | 24231205930 | $8.85 | ENDED | Shop at ECS Tuning | ||||
| 08 | Piston | 1 | 24231217309 | $41.01 | ENDED | Shop at ECS Tuning | ||||
| 08 | Piston | 1 | 24231217309 | $41.01 | ENDED | Shop at ECS Tuning | ||||
| 09 | O-ring | 1 | 24231215448 | $9.49 | ENDED | Shop at ECS Tuning | ||||
| 09 | O-ring | 1 | 24231215448 | $9.49 | ENDED | Shop at ECS Tuning | ||||
| 10 | O-ring | 1 | 24231205913 | $2.92 | ENDED | Shop at ECS Tuning | ||||
| 10 | O-ring | 1 | 24231205913 | $2.92 | ENDED | Shop at ECS Tuning | ||||
| 11 | Snap ring | 1 | 24231205934 | $0.84 | ENDED | Shop at ECS Tuning | ||||
| 11 | Snap ring | 1 | 24231205934 | $0.84 | ENDED | Shop at ECS Tuning | ||||
| 12 | backup ring | 1 | 24231215423 | $1.00 | ENDED | Shop at ECS Tuning | ||||
| 12 | backup ring | 1 | 24231215423 | $1.00 | ENDED | Shop at ECS Tuning | ||||
| 13 | O-ring | 1 | 24341422152 | $1.59 | Shop at ECS Tuning | |||||
| 13 | O-ring | 1 | 24341422152 | $1.59 | Shop at ECS Tuning | |||||
| 14 | Cylinder | 1 | 24231216351 | $123.86 | ENDED | Shop at ECS Tuning | ||||
| 14 | Cylinder | 1 | 24231216351 | $123.86 | ENDED | Shop at ECS Tuning | ||||
| 15 | Rectangring | 1 | 24231215980 | $12.19 | ENDED | Shop at ECS Tuning | ||||
| 15 | Rectangring | 1 | 24231215980 | $12.19 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3Li ZF 3hp22 drive clutch B?
- This technical diagram illustrates the ZF 3hp22 drive clutch B within the Automatic transmission group for the 2500-3.3Li 3.3Li produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Snap ring (Part #24231217134).
- Which models use the hardware listed in this ZF 3hp22 drive clutch B?
- The hardware and components featured in the ZF 3hp22 drive clutch B are specific to the 2500-3.3Li 3.3Li produced during 1975. These technical specifications ensure that parts like the Snap ring (24231217134) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ZF 3hp22 drive clutch B assembly?
- Each item in the ZF 3hp22 drive clutch B corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3Li, you can identify the Snap ring by locating its position on the schematic, which then links to the official BMW part number 24231217134 for the Automatic transmission section.
