ZF 3hp22 planet wheel set for BMW 2500-3.3Li 3.0L (1975)

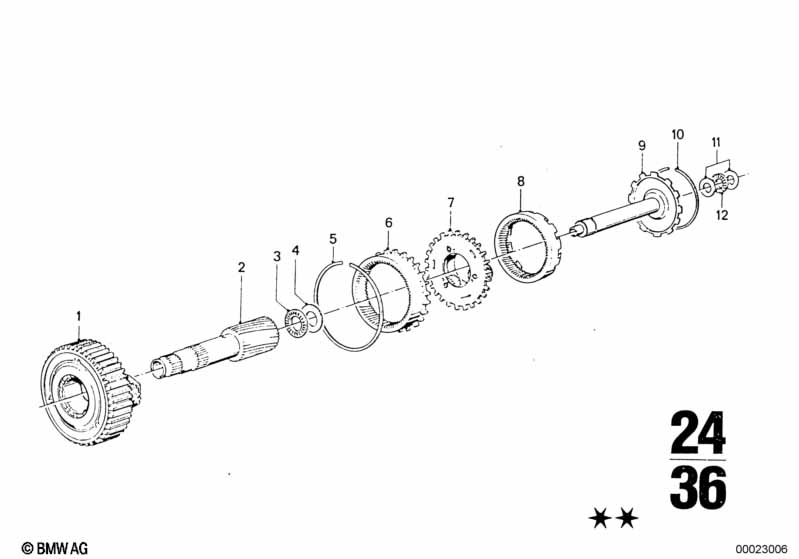

This ZF 3hp22 planet wheel set technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Planet wheel carrier | 1 | 09/1973 | 02/1977 | 24249061429 | $1166.22 | ENDED | Shop at ECS Tuning | ||
| 01 | Planet wheel carrier | 1 | 09/1973 | 02/1977 | 24249061429 | $1166.22 | ENDED | Shop at ECS Tuning | ||
| 02 | Sun shaft | Z=35 | 1 | 24241205959 | ENDED | Shop at ECS Tuning | ||||
| 02 | Sun shaft | Z=35 | 1 | 24241205959 | ENDED | Shop at ECS Tuning | ||||
| 03 | AX bearing | 1 | 24241209806 | $6.22 | Shop at ECS Tuning | |||||
| 03 | AX bearing | 1 | 24241209806 | $6.22 | Shop at ECS Tuning | |||||
| 04 | AX bearing | 1 | 24241209806 | $6.22 | Shop at ECS Tuning | |||||
| 04 | AX bearing | 1 | 24241209806 | $6.22 | Shop at ECS Tuning | |||||
| 05 | Snap ring | D=122MM | 1 | 24211205989 | $6.33 | ENDED | Shop at ECS Tuning | |||
| 05 | Snap ring | D=122MM | 1 | 24211205989 | $6.33 | ENDED | Shop at ECS Tuning | |||
| 06 | Hollow gear wheel,output | Z=73 | 1 | 24241205958 | $234.36 | ENDED | Shop at ECS Tuning | |||
| 06 | Hollow gear wheel,output | Z=73 | 1 | 24241205958 | $234.36 | ENDED | Shop at ECS Tuning | |||
| 07 | Planet wheel carrier | 1 | 09/1973 | 02/1977 | 24241218090 | $231.15 | ENDED | Shop at ECS Tuning | ||
| 07 | Planet wheel carrier | 1 | 09/1973 | 02/1977 | 24241218090 | $231.15 | ENDED | Shop at ECS Tuning | ||
| 08 | Hollow gear wheel,input | Z=73 | 1 | 24241205960 | $242.89 | ENDED | Shop at ECS Tuning | |||
| 08 | Hollow gear wheel,input | Z=73 | 1 | 24241205960 | $242.89 | ENDED | Shop at ECS Tuning | |||
| 09 | Intermediate shaft | 1 | 24241205963 | $426.31 | ENDED | Shop at ECS Tuning | ||||
| 09 | Intermediate shaft | 1 | 24241205963 | $426.31 | ENDED | Shop at ECS Tuning | ||||
| 10 | Snap ring | D=107MM | 1 | 24241205964 | $3.05 | ENDED | Shop at ECS Tuning | |||
| 10 | Snap ring | D=107MM | 1 | 24241205964 | $3.05 | ENDED | Shop at ECS Tuning | |||
| 11 | AX bearing | 2 | 24241209807 | $5.23 | ENDED | Shop at ECS Tuning | ||||
| 11 | AX bearing | 2 | 24241209807 | $5.23 | ENDED | Shop at ECS Tuning | ||||
| 12 | AX bearing | 1 | 24241209807 | $5.23 | ENDED | Shop at ECS Tuning | ||||
| 12 | AX bearing | 1 | 24241209807 | $5.23 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0L ZF 3hp22 planet wheel set?
- This technical diagram illustrates the ZF 3hp22 planet wheel set within the Automatic transmission group for the 2500-3.3Li 3.0L produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Planet wheel carrier (Part #24249061429).
- Which models use the hardware listed in this ZF 3hp22 planet wheel set?
- The hardware and components featured in the ZF 3hp22 planet wheel set are specific to the 2500-3.3Li 3.0L produced during 1975. These technical specifications ensure that parts like the Planet wheel carrier (24249061429) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ZF 3hp22 planet wheel set assembly?
- Each item in the ZF 3hp22 planet wheel set corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0L, you can identify the Planet wheel carrier by locating its position on the schematic, which then links to the official BMW part number 24249061429 for the Automatic transmission section.
