ZF 3hp22 output for BMW 2500-3.3Li 3.3L (1974)

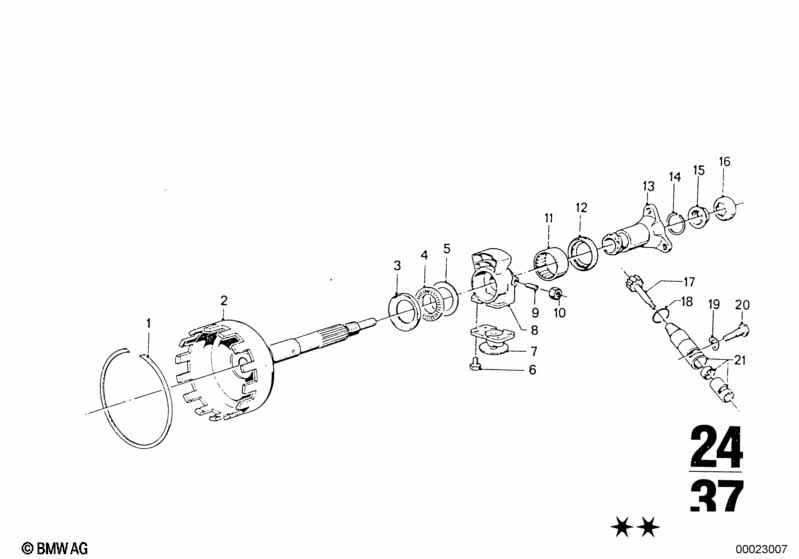

This ZF 3hp22 output technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Snap ring | D=122MM | 1 | 24211205989 | $6.33 | ENDED | Shop at ECS Tuning | |||
| 02 | Output shaft | 1 | 24211209805 | ENDED, +core | Shop at ECS Tuning | |||||
| 03 | AX bearing | 1 | 24211209809 | ENDED | Shop at ECS Tuning | |||||
| 04 | AX bearing | 1 | 24211209809 | ENDED | Shop at ECS Tuning | |||||
| 05 | AX bearing | 1 | 24211209809 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M6X16-Z3-2 | 2 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Regulator housing | 1 | 24321205979 | $100.82 | ENDED | Shop at ECS Tuning | ||||
| 08 | Voltage regulator | 1 | 24321208459 | $131.69 | ENDED | Shop at ECS Tuning | ||||
| 09 | Grub screw | M6X20 | 1 | 24321205629 | $0.55 | ENDED | Shop at ECS Tuning | |||
| 10 | Hex nut | M6 | 1 | 61211459656 | $1.98 | ENDED | Shop at ECS Tuning | |||
| 11 | Needle bearing | 48X40X20 | 1 | 24211205993 | ENDED | Shop at ECS Tuning | ||||
| 12 | Shaft seal | 40X58X10 | 1 | 24111207428 | ENDED | Shop at ECS Tuning | ||||
| 13 | Output flange | 1 | 24211207051 | $242.86 | ENDED | Shop at ECS Tuning | ||||
| 14 | Snap ring | 1 | 24211205992 | $0.59 | ENDED | Shop at ECS Tuning | ||||
| 15 | Collar nut | M20X1,5 | 1 | 23221201331 | $6.99 | Shop at ECS Tuning | ||||
| 16 | Securing plate | 1 | 23221201330 | $2.33 | Shop at ECS Tuning | |||||
| 17 | Speedometer drive | 1 | 24211207016 | $40.74 | ENDED | Shop at ECS Tuning | ||||
| 18 | O-ring | 19X1,8 | 1 | 24211218739 | $1.58 | ENDED | Shop at ECS Tuning | |||
| 19 | Wave washer | B8 | 1 | 07119932093 | $0.38 | Shop at ECS Tuning | ||||
| 20 | Hex bolt | M8X20 | 1 | 23211207159 | $2.75 | Shop at ECS Tuning | ||||
| 21 | Speedometer drive | 1 | 24211207016 | $40.74 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
