ZF 3hp22 gear shift/parking lock for BMW 2500-3.3Li 3.3L (1974)

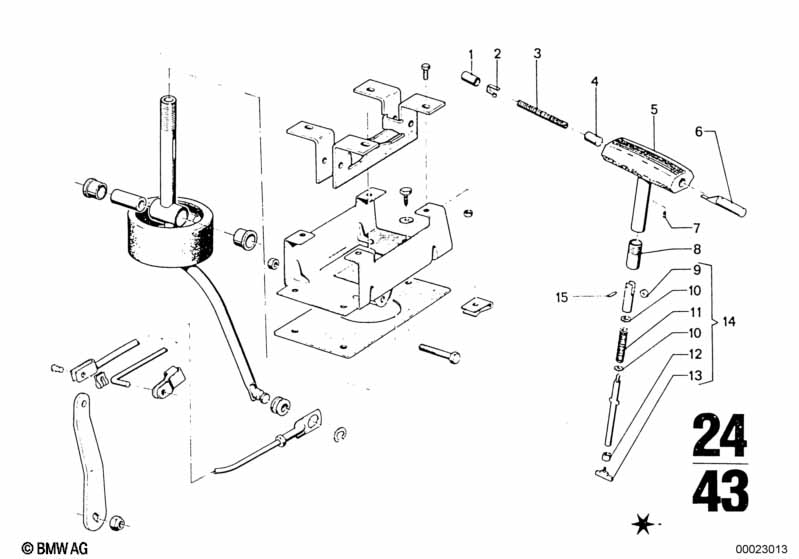

This ZF 3hp22 gear shift/parking lock technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Button | 1 | 25161200234 | ENDED | Shop at ECS Tuning | |||||
| 02 | Spring | 1 | 25161200233 | ENDED | Shop at ECS Tuning | |||||
| 03 | Spring | 1 | 25161200232 | $8.66 | ENDED | Shop at ECS Tuning | ||||
| 04 | Holder | 1 | 25161200130 | ENDED | Shop at ECS Tuning | |||||
| 05 | Handle | 1 | 24511666346 | $87.33 | ENDED | Shop at ECS Tuning | ||||
| 06 | Push-button | 1 | 24511666350 | ENDED | Shop at ECS Tuning | |||||
| 07 | Screw | M4X8 | 2 | 07119905104 | $1.84 | ENDED | Shop at ECS Tuning | |||
| 08 | Nut | 1 | 25161203636 | ENDED | Shop at ECS Tuning | |||||
| 09 | Roll pin | 1 | 24511666330 | ENDED | Shop at ECS Tuning | |||||
| 10 | Washer | 2 | 24511666332 | ENDED | Shop at ECS Tuning | |||||
| 11 | Spring | 1 | 24511666325 | ENDED | Shop at ECS Tuning | |||||
| 12 | Bush | 1 | 24511666338 | ENDED | Shop at ECS Tuning | |||||
| 13 | Holder | 1 | 24511666339 | $68.00 | ENDED | Shop at ECS Tuning | ||||
| 14 | Selector rod | 1 | 24511666323 | $62.10 | Shop at ECS Tuning | |||||
| 15 | Dowel pin | 3X8 | 1 | 07119942161 | $0.11 | Shop at ECS Tuning |
