ZF 3hp22 gear shift/parking lock for BMW 2500-3.3Li 3.0L (1975)

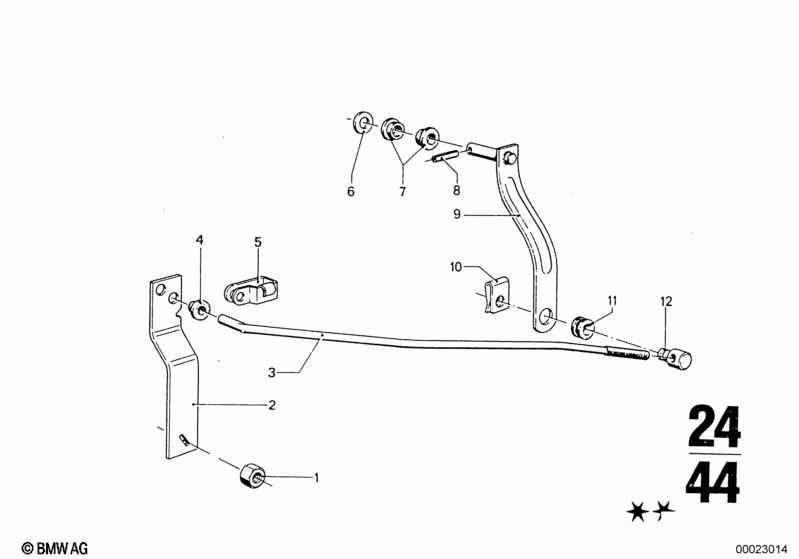

This ZF 3hp22 gear shift/parking lock technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Self-locking hex nut | M8X1 | 1 | 07129922770 | $0.24 | Shop at ECS Tuning | ||||
| 01 | Self-locking hex nut | M8X1 | 1 | 07129922770 | $0.24 | Shop at ECS Tuning | ||||
| 02 | Selector lever | 1 | 24511205672 | $18.48 | Shop at ECS Tuning | |||||
| 02 | Selector lever | 1 | 24511205672 | $18.48 | Shop at ECS Tuning | |||||
| 03 | Selector rod | 1 | 25161205637 | ENDED | Shop at ECS Tuning | |||||
| 03 | Selector rod | 1 | 25161205637 | ENDED | Shop at ECS Tuning | |||||
| 04 | Bush | 1 | 25161204945 | $0.92 | Shop at ECS Tuning | |||||
| 04 | Bush | 1 | 25161204945 | $0.92 | Shop at ECS Tuning | |||||
| 05 | Clip | 1 | 25161208447 | $2.00 | ENDED | Shop at ECS Tuning | ||||
| 05 | Clip | 1 | 25161208447 | $2.00 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shim | 18X25X1 | 1 | 07119932650 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shim | 18X25X1 | 1 | 07119932650 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bushing | 2 | 25161204756 | $0.86 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bushing | 2 | 25161204756 | $0.86 | ENDED | Shop at ECS Tuning | ||||
| 08 | Roll pin | 4X28 | 1 | 07119941224 | ENDED | Shop at ECS Tuning | ||||
| 08 | Roll pin | 4X28 | 1 | 07119941224 | ENDED | Shop at ECS Tuning | ||||
| 09 | Shift lever-lower part | 1 | 25161204774 | $29.80 | ENDED | Shop at ECS Tuning | ||||
| 09 | Shift lever-lower part | 1 | 25161204774 | $29.80 | ENDED | Shop at ECS Tuning | ||||
| 10 | Circlip | 1 | 41621883598 | $0.77 | ENDED | Shop at ECS Tuning | ||||
| 10 | Circlip | 1 | 41621883598 | $0.77 | ENDED | Shop at ECS Tuning | ||||
| 11 | Joint sleeve | 1 | 25161207836 | $1.27 | Shop at ECS Tuning | |||||
| 11 | Joint sleeve | 1 | 25161207836 | $1.27 | Shop at ECS Tuning | |||||
| 12 | Pin | 1 | 25161204883 | $6.62 | ENDED | Shop at ECS Tuning | ||||
| 12 | Pin | 1 | 25161204883 | $6.62 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0L ZF 3hp22 gear shift/parking lock?
- This technical diagram illustrates the ZF 3hp22 gear shift/parking lock within the Automatic transmission group for the 2500-3.3Li 3.0L produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Self-locking hex nut (Part #07129922770).
- Which models use the hardware listed in this ZF 3hp22 gear shift/parking lock?
- The hardware and components featured in the ZF 3hp22 gear shift/parking lock are specific to the 2500-3.3Li 3.0L produced during 1975. These technical specifications ensure that parts like the Self-locking hex nut (07129922770) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ZF 3hp22 gear shift/parking lock assembly?
- Each item in the ZF 3hp22 gear shift/parking lock corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0L, you can identify the Self-locking hex nut by locating its position on the schematic, which then links to the official BMW part number 07129922770 for the Automatic transmission section.
