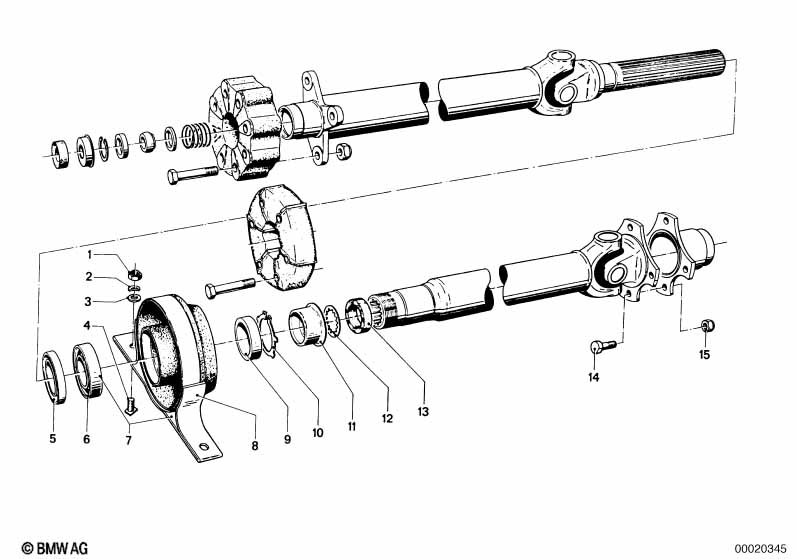

Drive shaft,univ.joint/center mounting for BMW 1500-2000CS 1800 (1968)
This Drive shaft,univ.joint/center mounting technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 02 | Wave washer | B8 | 2 | 07119932093 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 05 | Dust protection | 1 | 26113748138 | $1.59 | Shop at ECS Tuning | |||||
| 06 | Grooved ball bearing | D=55/D=30 | 1 | 26121225071 | $26.16 | Shop at ECS Tuning | ||||
| 07 | Center Mount | 1 | 26111206502 | $125.71 | Shop at ECS Tuning | |||||

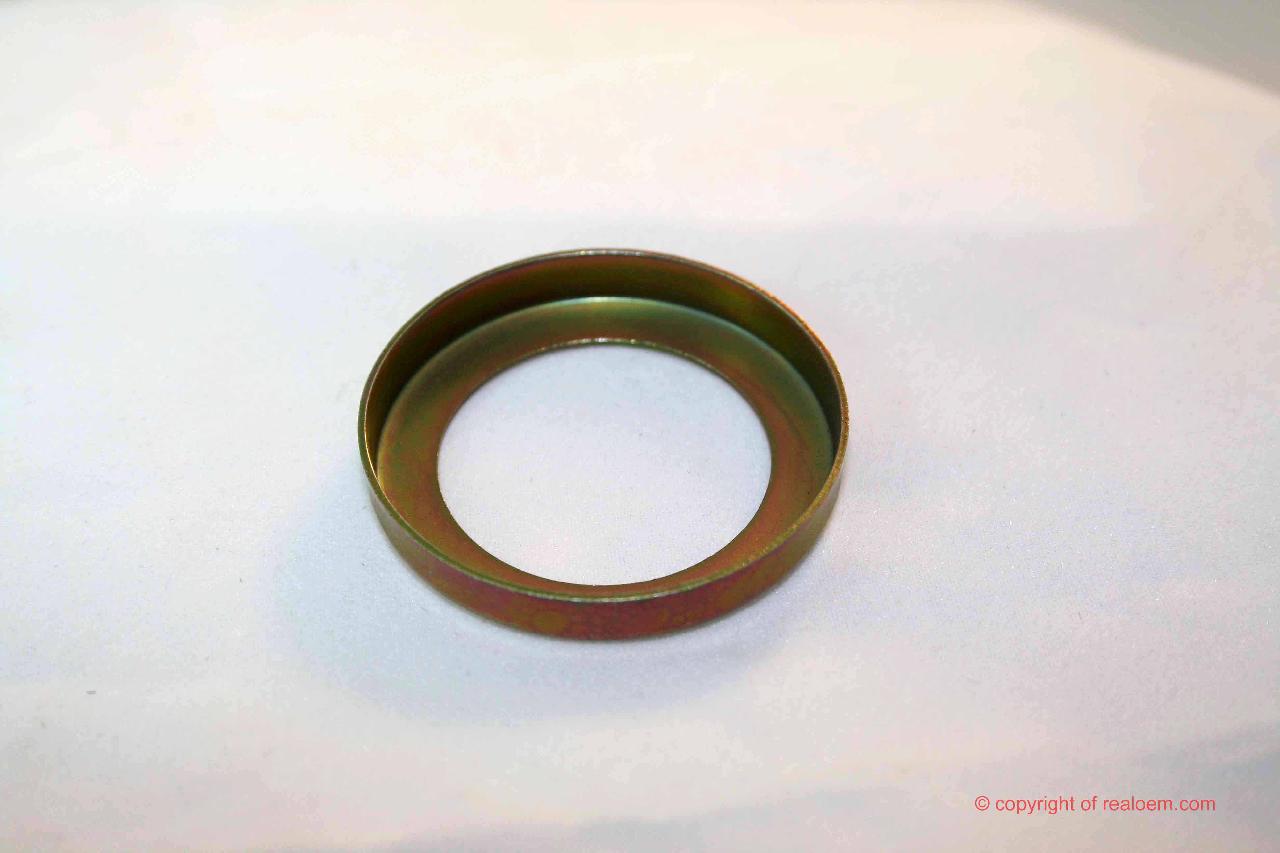

| 09 | Dust protection | 1 | 26121100992 | $2.48 | Shop at ECS Tuning | |||||
| 10 | Lock Ring | 1 | 26123648156 | $0.98 | Shop at ECS Tuning | |||||
| 11 | Threaded ring with clamp-ring | 1 | 26117514037 | $12.52 | Shop at ECS Tuning | |||||
| 12 | Tooth washer | 1 | 26111100692 | $0.55 | Shop at ECS Tuning | |||||
| 13 | Clamp ring | 1 | 26111207480 | $5.27 | ENDED | Shop at ECS Tuning | ||||
| 14 | Fillister-head screw | M10X25 | 4 | 26111101015 | $0.91 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
