Stabilizer, front for BMW 1500-2000CS 1500 (1964)

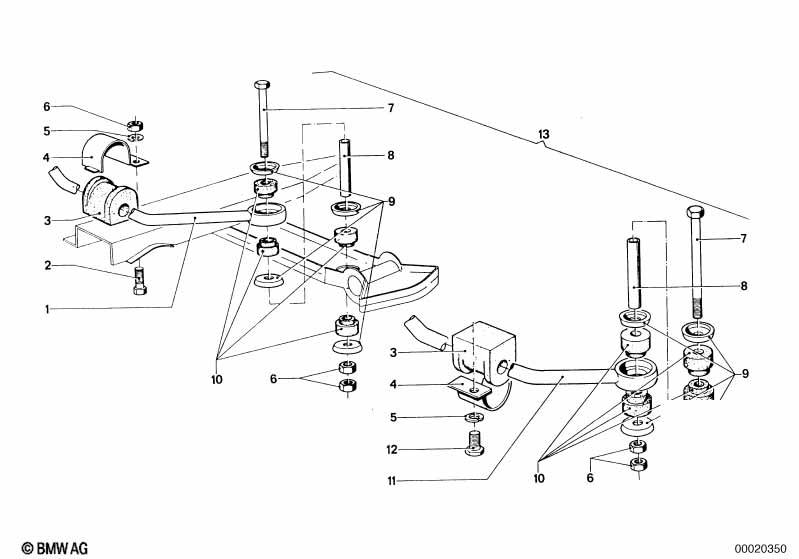

This Stabilizer, front technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, front | 1 | 31352654000 | ENDED | Shop at ECS Tuning | |||||
| 02 | Fillister-head screw | M8X18 | 4 | 07119919935 | $0.30 | Shop at ECS Tuning | ||||
| 03 | Rubber Mounting | D=17MM | 4 | 31352654110 | $19.85 | Shop at ECS Tuning | ||||
| 04 | Stabilizer support | 4 | 31352654112 | $9.36 | Shop at ECS Tuning | |||||
| 05 | Spring washer | B8 | 8 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8-8-ZNS3 | 12 | 01/1972 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 06 | Hex nut | M8-8-ZNNIV SI | 12 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X160 | 4 | 07119912595 | $3.47 | Shop at ECS Tuning | ||||
| 08 | Spacer sleeve | 4 | 31352654108 | $4.68 | ENDED | Shop at ECS Tuning | ||||
| 09 | Plate | 16 | 31351114570 | $3.59 | Shop at ECS Tuning | |||||
| 10 | Rubber Ring | 16 | 31351125712 | $1.37 | Shop at ECS Tuning | |||||
| 11 | Stabilizer, rear | D=17MM | 1 | 33553754000 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X18-8.8-ZNS3 | 4 | 07119904146 | $0.65 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
