Steering box single components for BMW 1500-2000CS 1800 (1966)

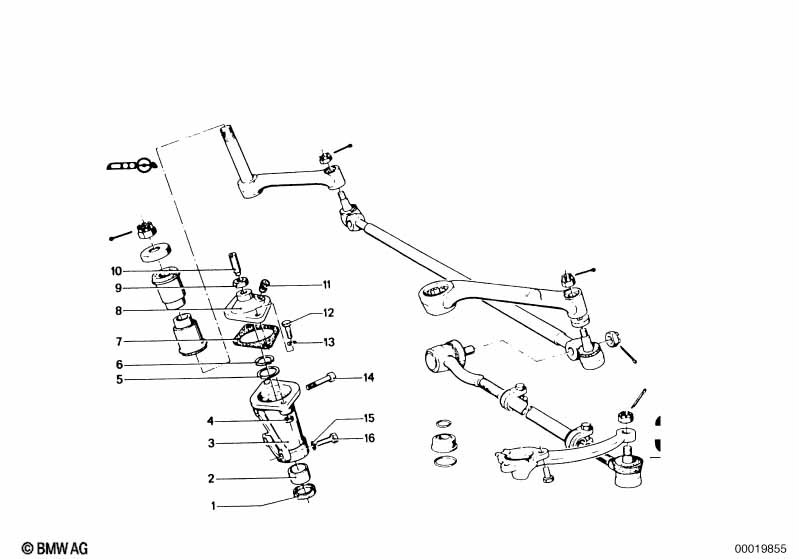

This Steering box single components technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1966.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shaft seal | 1 | 32221108259 | $5.36 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bush | 1 | 32212675164 | ENDED | Shop at ECS Tuning | |||||
| 03 | Supporting bracket | 1 | 32212675160 | ENDED | Shop at ECS Tuning | |||||

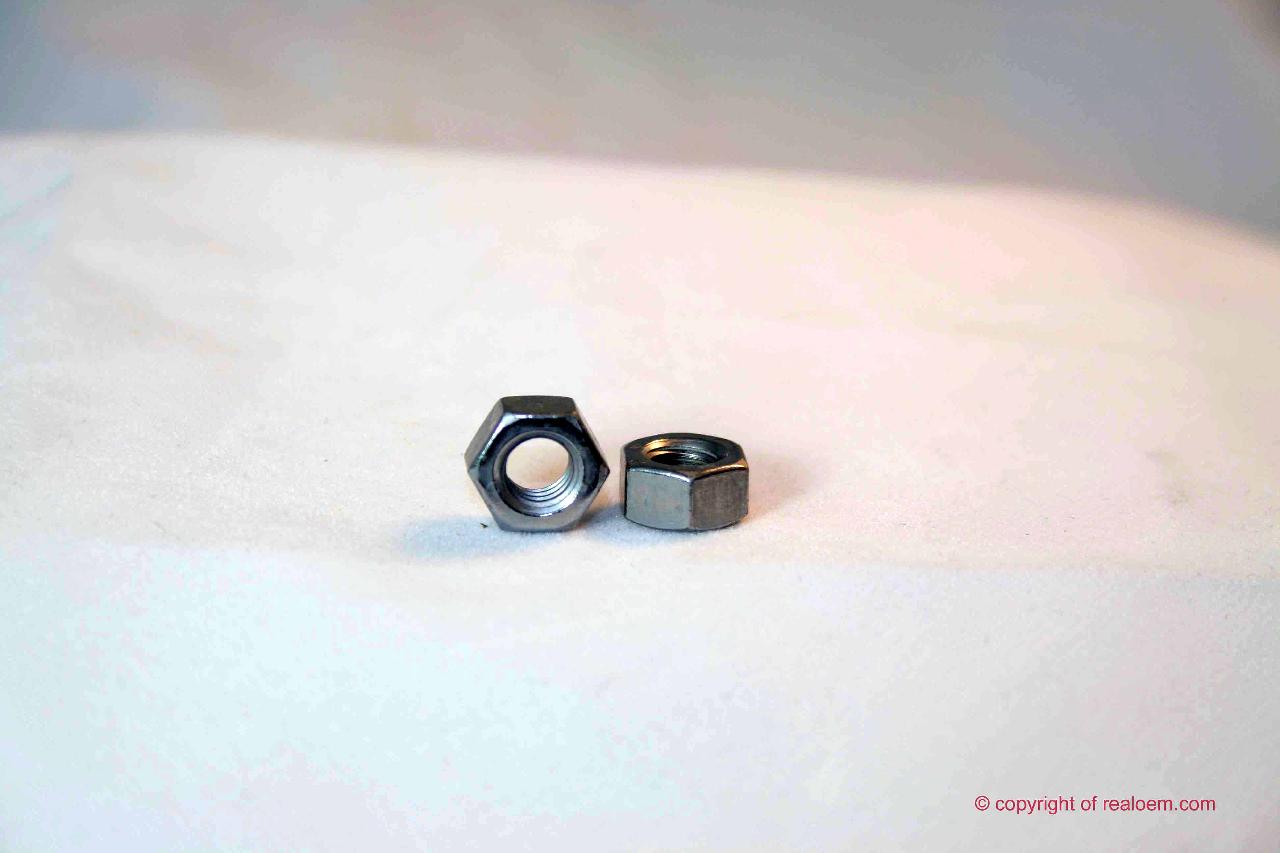

| 04 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Shim | 2,500MM | 1 | 32212675174 | $0.59 | ENDED | Shop at ECS Tuning | |||
| 07 | Gasket ring | 1 | 32212675169 | $1.20 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cover | 1 | 32212675168 | ENDED | Shop at ECS Tuning | |||||
| 09 | Hex nut | M10 | 1 | 07119922851 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 10 | Screw | 1 | 32112570228 | ENDED | Shop at ECS Tuning | |||||
| 11 | Plug | 1 | 32212675171 | $1.41 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X25 | 2 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||

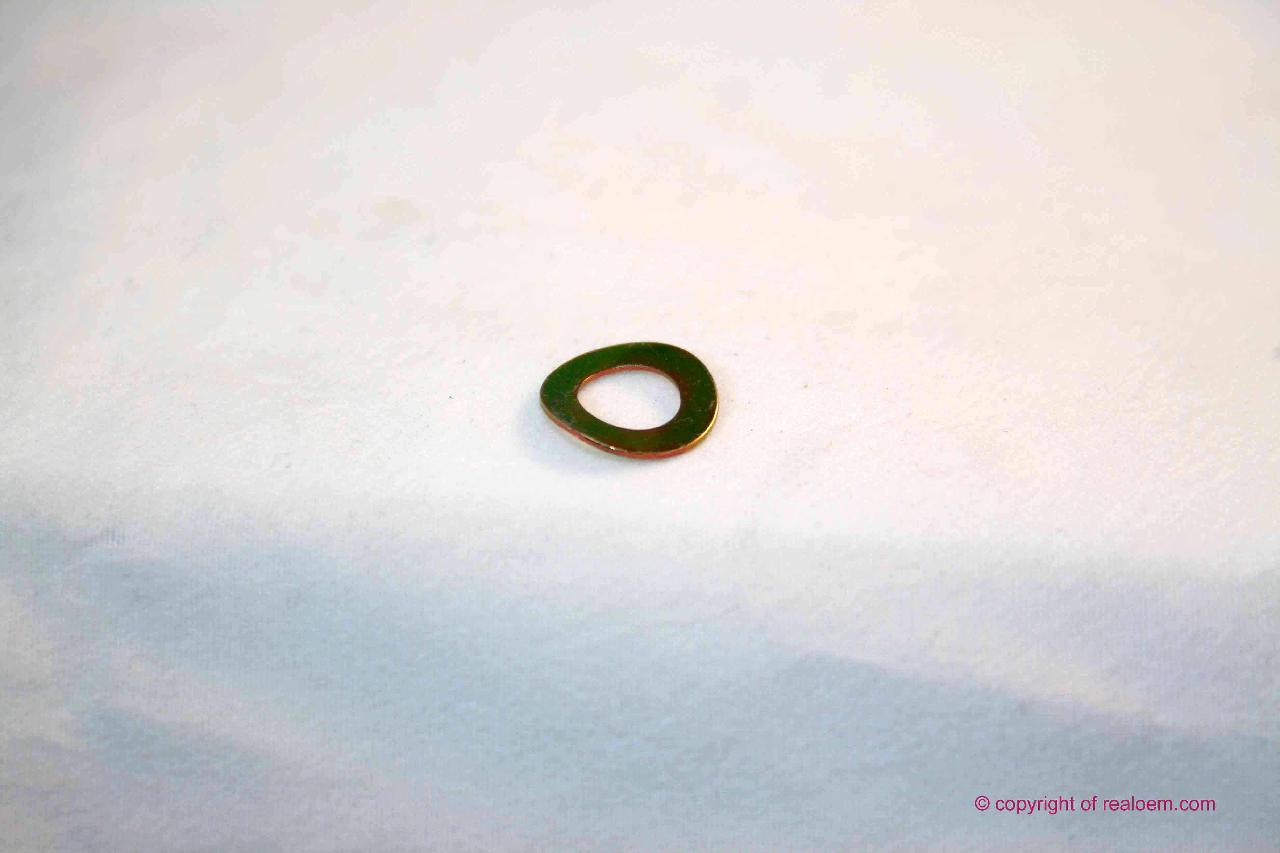

| 13 | Wave washer | B6 | 2 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 14 | Fillister-head screw | M8X28 | 1 | 07119919645 | ENDED | Shop at ECS Tuning | ||||
| 15 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X28 | 2 | 07119913672 | ENDED | Shop at ECS Tuning |
