Steering column-tube/trim panel for BMW 1500-2000CS 1800 (1966)

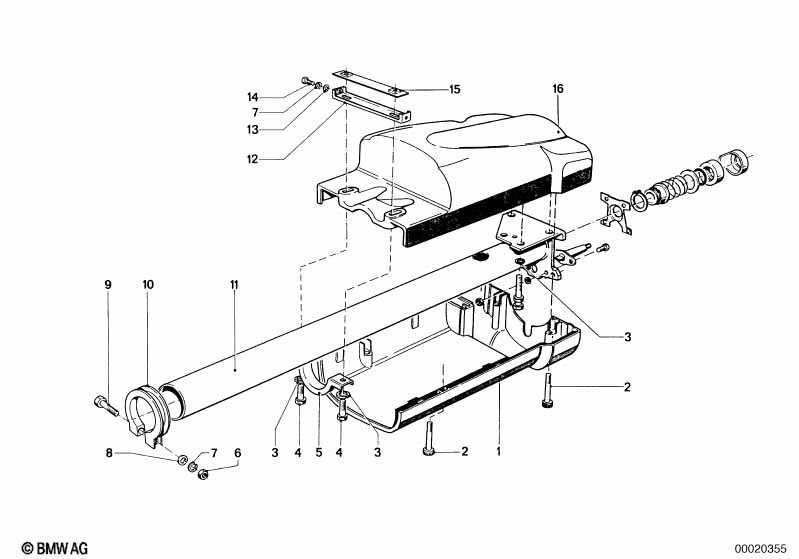

This Steering column-tube/trim panel technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1966.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lower trim panel | 1 | 32311101815 | ENDED | Shop at ECS Tuning | |||||
| 03 | Wave washer | B6 | 3 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt | M6X30 | 2 | 07119912283 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Bow | 1 | 32311101853 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hex nut | M8-8-ZNS3 | 1 | 01/1972 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 06 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Washer | 8,4 | 1 | 07119931697 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Steering column tube | 1 | 32311105753 | ENDED | Shop at ECS Tuning | |||||
| 12 | Holder | 1 | 32312682117 | ENDED | Shop at ECS Tuning | |||||
| 13 | Washer | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 16 | Trim panel upper part | 1 | 32311103751 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Steering column-tube/trim panel?
- This technical diagram illustrates the Steering column-tube/trim panel within the Steering group for the 1500-2000CS 1800 produced during 1966. It provides a detailed exploded view of the components, identifying key parts such as the Lower trim panel (Part #32311101815).
- Which models use the hardware listed in this Steering column-tube/trim panel?
- The hardware and components featured in the Steering column-tube/trim panel are specific to the 1500-2000CS 1800 produced during 1966. These technical specifications ensure that parts like the Lower trim panel (32311101815) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering column-tube/trim panel assembly?
- Each item in the Steering column-tube/trim panel corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Lower trim panel by locating its position on the schematic, which then links to the official BMW part number 32311101815 for the Steering section.
