Steering box single components for BMW 2500-3.3Li 2500 (1971)

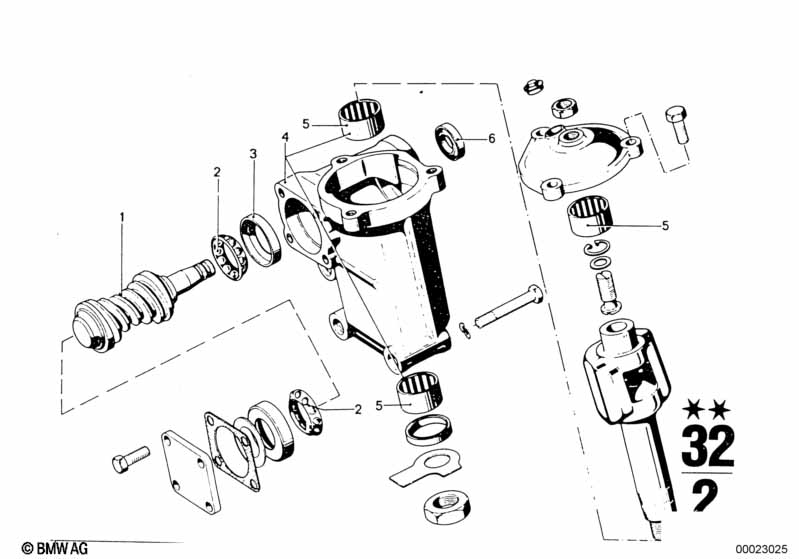

This Steering box single components technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Worm gear | 1 | 08/1968 | 09/1973 | 32111104722 | ENDED | Shop at ECS Tuning | |||
| 02 | Bearing ball cage | 2 | 32112670135 | $52.35 | ENDED | Shop at ECS Tuning | ||||
| 04 | Housing | 1 | 08/1968 | 02/1977 | 32111116767 | ENDED | Shop at ECS Tuning | |||
| 05 | Needle sleeve | 3 | 32111114272 | $23.99 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shaft seal | 1 | 32111110269 | $19.71 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
