Steering box single components for BMW 2500-3.3Li 3.3L (1974)

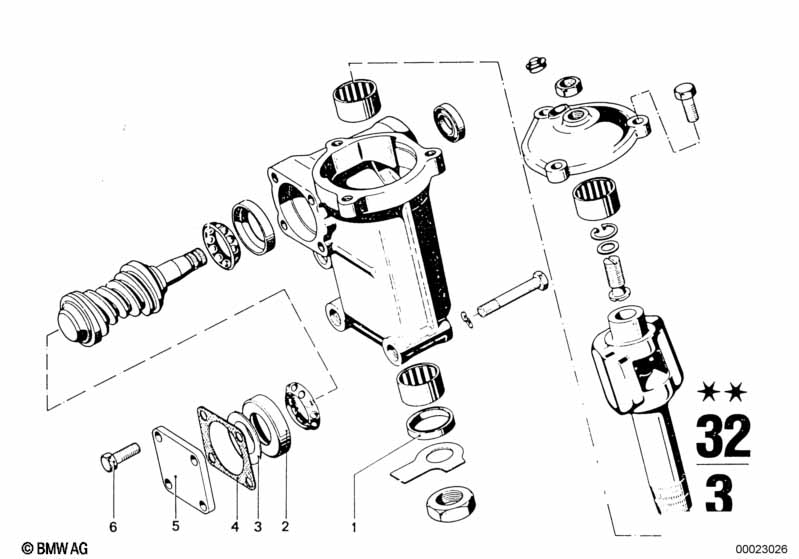

This Steering box single components technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shaft seal | 1 | 32111104719 | $20.44 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Washer | X | 32111114287 | ENDED | Shop at ECS Tuning | |||||
| 02 | Bearing ball ring,lower | 1 | 32111110268 | $25.89 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Washer | X | 32111114287 | ENDED | Shop at ECS Tuning | |||||
| 03 | Washer | 1 | 32111114287 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bearing ball ring,lower | X | 32111110268 | $25.89 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gasket | 1 | 32112670165 | $4.70 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gasket | 1 | 32112670166 | ENDED | Shop at ECS Tuning | |||||
| 04 | Gasket | 1 | 32112670167 | ENDED | Shop at ECS Tuning | |||||
| 04 | Gasket | 0,3MM | 1 | 32112670168 | ENDED | Shop at ECS Tuning | ||||
| 05 | Flange | 1 | 32112670143 | $64.92 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X30-Z3 | 4 | 07/1969 | 02/1977 | 07119915085 | $0.62 | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
