Hydro steering-installation kit for BMW 2500-3.3Li 2500 (1971)

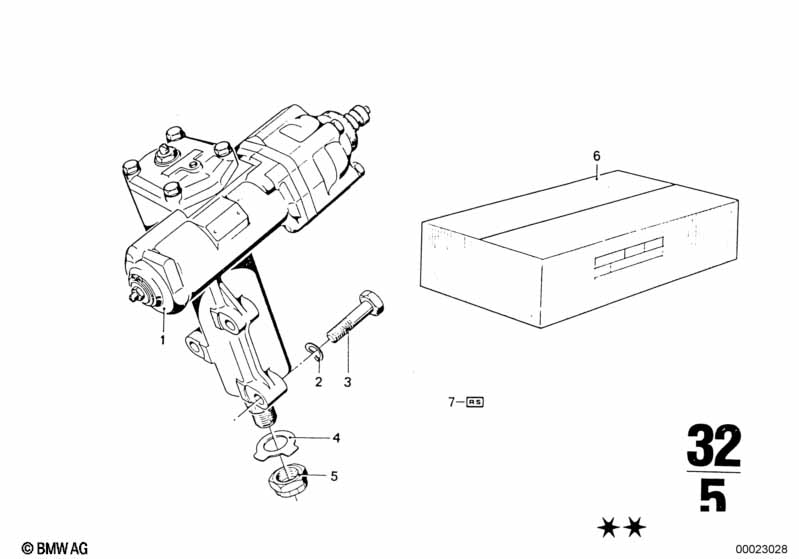

This Hydro steering-installation kit technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydro steering box | I = 15.7:1 | 1 | 07/1969 | 02/1977 | 32131101274 | ENDED | Shop at ECS Tuning | ||
| 02 | Wave washer | B10-ZNS3 | 3 | 07119904463 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M10X70-8.8 ZNS3 | 1 | 07119903068 | $4.63 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M10X45 | 2 | 07119913860 | ENDED | Shop at ECS Tuning | ||||
| 04 | Securing plate | 23 | 1 | 07119935671 | $8.81 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex nut | M22X1,5 | 1 | 07119921087 | $10.95 | Shop at ECS Tuning | ||||
| 06 | Installing set hydro steering | 1 | 07/1969 | 09/1973 | 32131108613 | ENDED | Shop at ECS Tuning | |||
| 07 | Repair kit hydro steering box | 1 | 32131106751 | ENDED | Shop at ECS Tuning | |||||
| 07 | Gasket set hydro steering | 1 | 32131106752 | $44.11 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Hydro steering-installation kit?
- This technical diagram illustrates the Hydro steering-installation kit within the Steering group for the 2500-3.3Li 2500 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Hydro steering box (Part #32131101274).
- Which models use the hardware listed in this Hydro steering-installation kit?
- The hardware and components featured in the Hydro steering-installation kit are specific to the 2500-3.3Li 2500 produced during 1971. These technical specifications ensure that parts like the Hydro steering box (32131101274) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering-installation kit assembly?
- Each item in the Hydro steering-installation kit corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Hydro steering box by locating its position on the schematic, which then links to the official BMW part number 32131101274 for the Steering section.
