Hydro steering box for BMW 2500-3.3Li 2500 (1971)

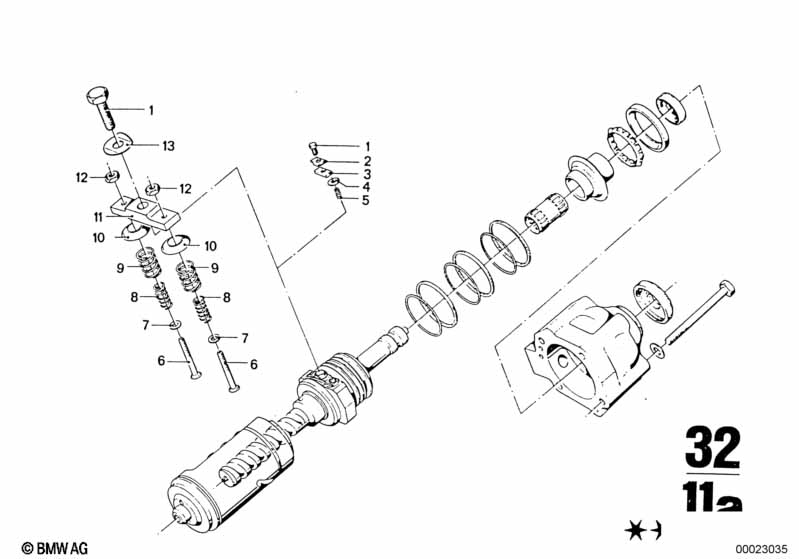

This Hydro steering box technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M5X15 | 1 | 07119913235 | $3.51 | ENDED | Shop at ECS Tuning | |||
| Early version | ||||||||||
| 02 | Securing plate | 1 | 32131104800 | ENDED | Shop at ECS Tuning | |||||
| 03 | Holder | 1 | 32131104799 | ENDED | Shop at ECS Tuning | |||||
| 04 | Washer | 2 | 32131104797 | ENDED | Shop at ECS Tuning | |||||
| 05 | Compression spring | 2 | 32131104798 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Hydro steering box?
- This technical diagram illustrates the Hydro steering box within the Steering group for the 2500-3.3Li 2500 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119913235).
- Which models use the hardware listed in this Hydro steering box?
- The hardware and components featured in the Hydro steering box are specific to the 2500-3.3Li 2500 produced during 1971. These technical specifications ensure that parts like the Hex bolt (07119913235) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering box assembly?
- Each item in the Hydro steering box corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119913235 for the Steering section.
