Hydro steering box for BMW 2500-3.3Li 2500 (1971)

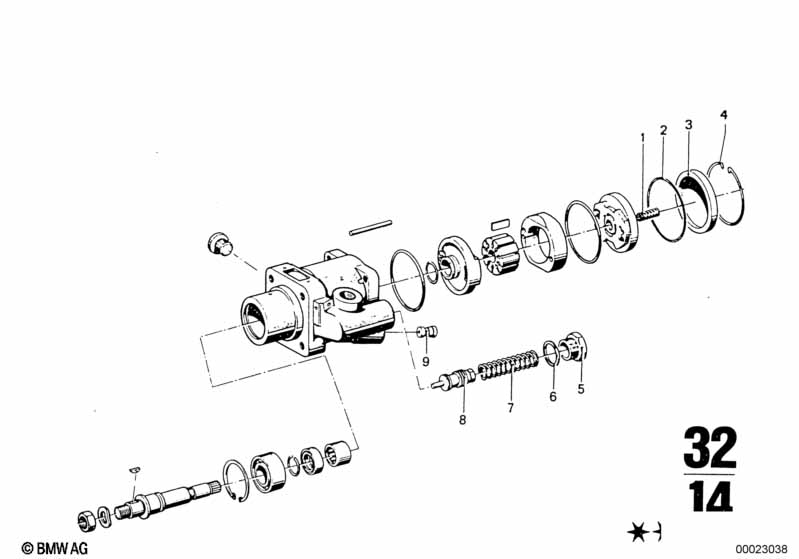

This Hydro steering box technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Power steering |
=Yes |
|||||||||
| 01 | Compression spring | 1 | 32411105156 | ENDED | Shop at ECS Tuning | |||||
| 02 | O-ring | 1 | 32411105157 | $4.76 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cover | 1 | 32411105158 | $14.22 | ENDED | Shop at ECS Tuning | ||||
| 04 | Lock Ring | 1 | 32411105159 | $2.44 | ENDED | Shop at ECS Tuning | ||||
| 05 | Screw plug | 1 | 32411105160 | $3.77 | ENDED | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A22X27-CU | 1 | 07119963354 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Compression spring | 1 | 32411105143 | $7.70 | ENDED | Shop at ECS Tuning | ||||
| 08 | Valve piston tolerance size 1 | 1 | 32411117617 | $31.26 | ENDED | Shop at ECS Tuning | ||||
| 08 | Valve piston tolerance size 2 | 1 | 32411117618 | $35.81 | ENDED | Shop at ECS Tuning | ||||
| 09 | Fuel flow reducer | 1 | 32411105140 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Hydro steering box?
- This technical diagram illustrates the Hydro steering box within the Steering group for the 2500-3.3Li 2500 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Compression spring (Part #32411105156).
- Which models use the hardware listed in this Hydro steering box?
- The hardware and components featured in the Hydro steering box are specific to the 2500-3.3Li 2500 produced during 1971. These technical specifications ensure that parts like the Compression spring (32411105156) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering box assembly?
- Each item in the Hydro steering box corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Compression spring by locating its position on the schematic, which then links to the official BMW part number 32411105156 for the Steering section.
